제품 상세 정보:
|
유압식: | 진공, 계측기, 차이 | 운영 압력: | 15 psi |
---|---|---|---|
정확성: | 0.4% | 출력 유형: | 아날로그 |
강조하다: | Board Mount Pressure Sensors Miniature Low,Miniature Low Board Mount Pressure Sensors,PCCFA6D Board Mount Pressure Sensors |

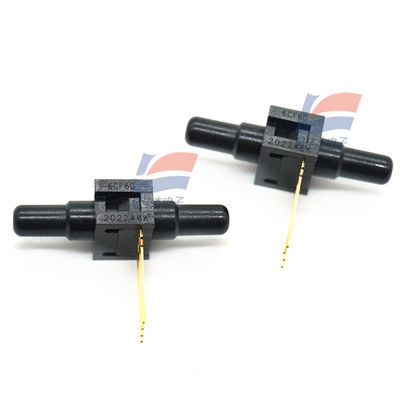

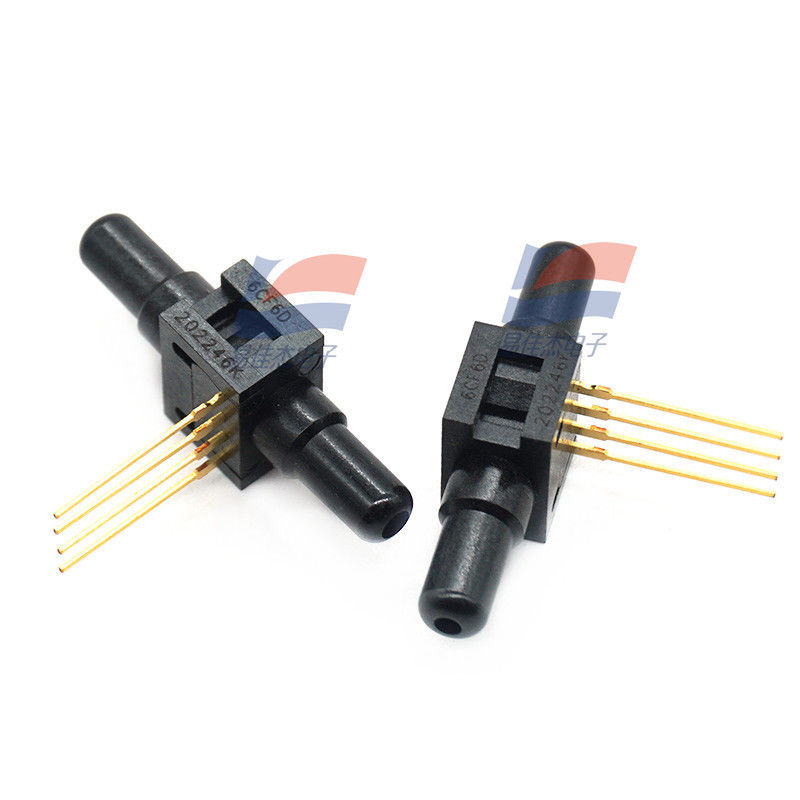

26PCCFA6D Board Mount Pressure Sensors Miniature Low
The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is proportional to the input pressure.
Mounting Style
|
Through Hole |
Operating Supply Voltage | 10 V |
Port Type | Dual Axial Barbless, Opposite Sides |
Package / Case | SIP-4 |
Minimum Operating Temperature | - 40℃ |
Maximum Operating Temperature | + 85℃ |
Supply Voltage - Max | 16 V |
