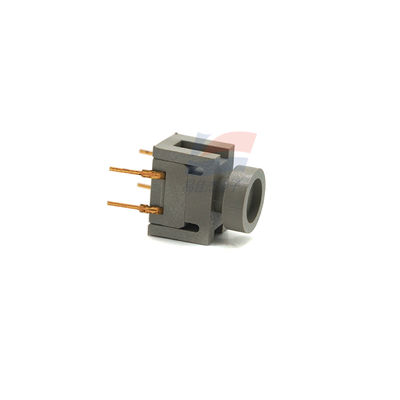

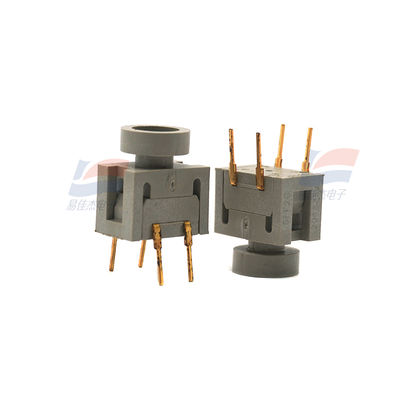

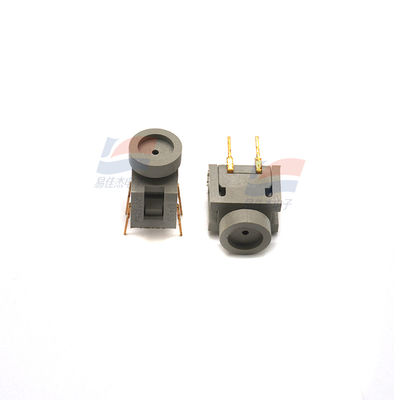

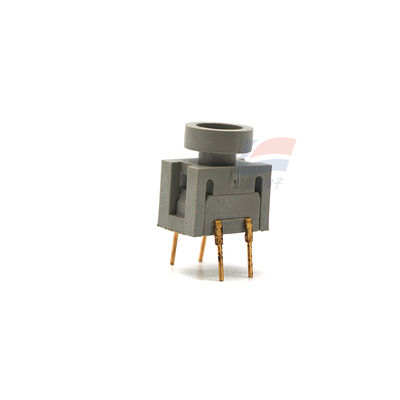

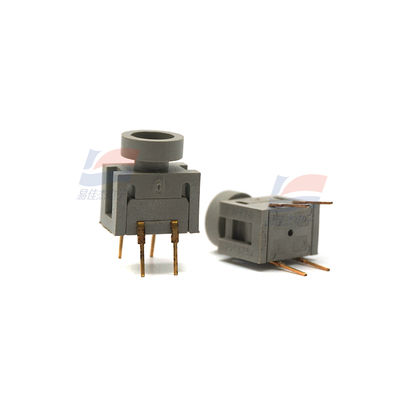

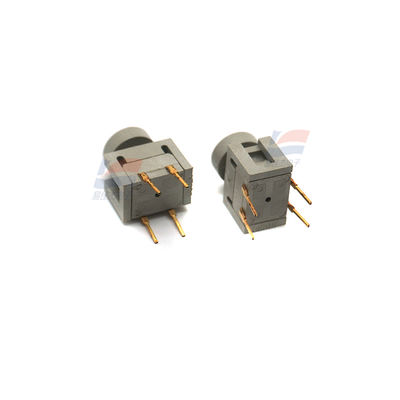

26PCFFS2G Board Mount Pressure Sensors Vacuum Gauge Type 100psi High Precision 0.4% Accuracy

제가 지금 온라인 채팅 해요

26PCFFS2G Board Mount Pressure Sensors Vacuum Gauge Type 100psi High Precision 0.4% Accuracy

26PCFFS2G Board Mount Pressure Sensors Vacuum Gauge Type 100psi High Precision 0.4% Accuracy
26PCFFS2G Board Mount Pressure Sensors Vacuum Gauge Type 100psi High Precision 0.4% Accuracy 26PCFFS2G Board Mount Pressure Sensors Vacuum Gauge Type 100psi High Precision 0.4% Accuracy 26PCFFS2G Board Mount Pressure Sensors Vacuum Gauge Type 100psi High Precision 0.4% Accuracy 26PCFFS2G Board Mount Pressure Sensors Vacuum Gauge Type 100psi High Precision 0.4% Accuracy 26PCFFS2G Board Mount Pressure Sensors Vacuum Gauge Type 100psi High Precision 0.4% Accuracy 26PCFFS2G Board Mount Pressure Sensors Vacuum Gauge Type 100psi High Precision 0.4% Accuracy

큰 이미지 :  26PCFFS2G Board Mount Pressure Sensors Vacuum Gauge Type 100psi High Precision 0.4% Accuracy

제품 상세 정보:
원래 장소: 미국
브랜드 이름: YJJ
모델 번호: 26pcffs2g
결제 및 배송 조건:
최소 주문 수량: 1
가격: 협상 가능
포장 세부 사항: 표준 패키지
배달 시간: 3-5Workingdays
지불 조건: L/C, D/A, D/P, T/T, 웨스턴 유니온, 머니그램

26PCFFS2G Board Mount Pressure Sensors Vacuum Gauge Type 100psi High Precision 0.4% Accuracy

설명
운영 압력: 100 psi 정확성: 0.4%
출력 유형: 아날로그 증가하는 방식: 구멍을 통해
강조하다:

100psi Pressure Sensor

,

26PCFFS2G Pressure Sensor

,

Board Mount Pressure Sensor

26PCFFS2G Board Mount Pressure Sensors Vacuum Gauge Type 100psi



FEATURES
1 Lowest priced sensor with temperature compensation and calibration
2 Variety of gage pressure port configurations - easily and quickly modified for your special needs
3 Operable after exposure to frozen conditions
4 1 Choice of termination for gage sensors Calibrated Null and Span
5 Temperature compensated for Span over 0 to 50°C
6 Provides interchangeability
7 Can be used to measure vacuum or positive pressure
8 Ideal for wet/wet differential applications



Mounting Style
Through Hole
Port Type Single Axial Barbless
Package / Case DIP-4
Minimum Operating Temperature - 40℃
Maximum Operating Temperature + 85℃
Port Size 0.36 in
Supply Voltage - Max 10 V



26PCFFS2G Board Mount Pressure Sensors Vacuum Gauge Type 100psi High Precision 0.4% Accuracy 0
