제품 상세 정보:
|
| 감지 원리: | 핫 와이어 반도체 유형 | 표준 패키지: | 플라스틱베이스와 금속 캔 |
|---|---|---|---|
| 대상가스: | 아세톤 | 일반적인 감지 범위: | 1 ~ 20ppm |
| 강조하다: | TGS1820 acetone gas sensor,high sensitivity acetone detector,selective acetone gas sensor |
||

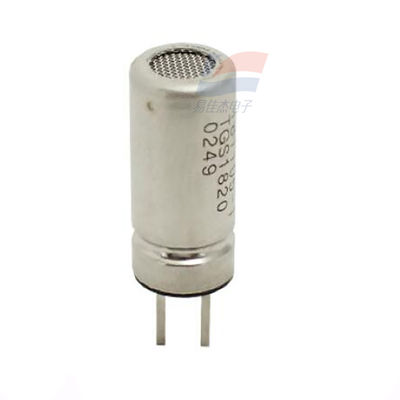

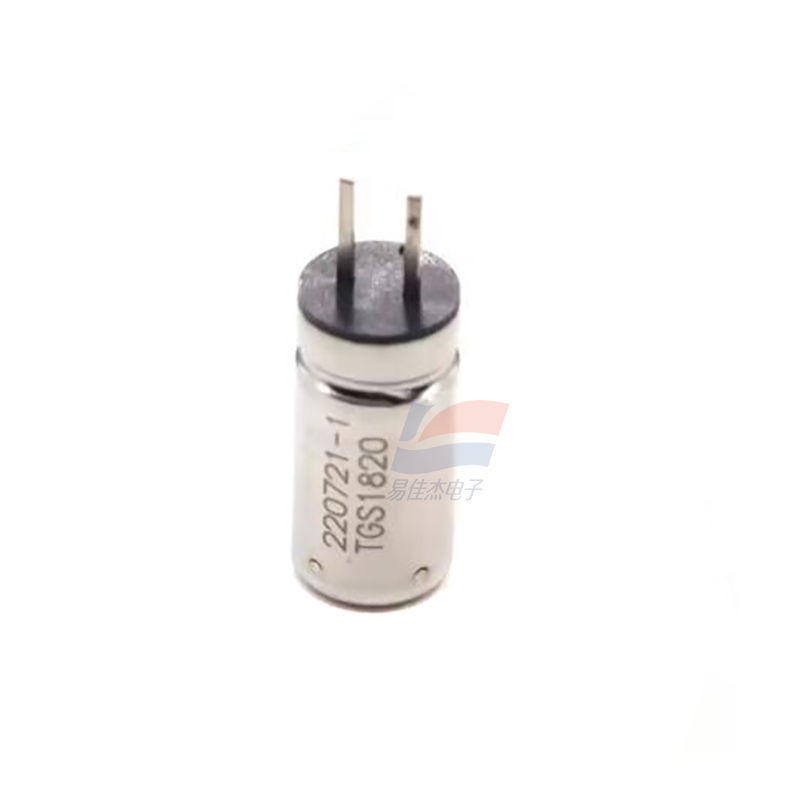

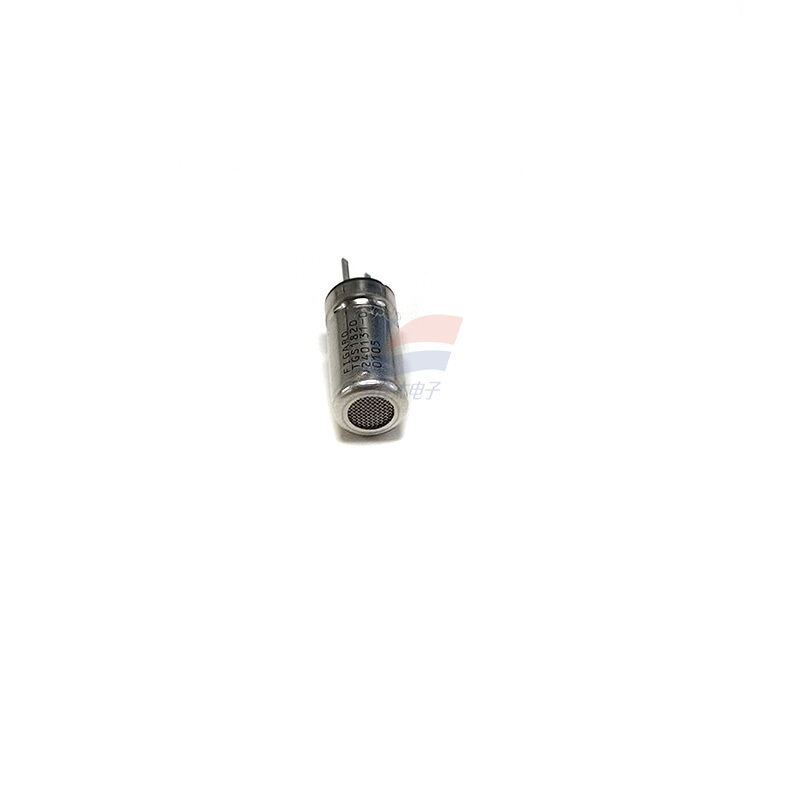

TGS1820 AcetoneGas Sensors High Sensitivity And Selectivity AcetoneDetectors
Features:
* High sensitivity and selectivity toacetone
* Low interference from ethanol and hydrogen
* Quick response
* Compact
* Low power consumption
Applications:
* Acetonedetectors
* Breathacetone testers
| Operating temperature and humidity | 0 ~ 40˚C, 10 ~ 80%RH |
| Circuit voltage | 2.30±0.05V DC |
| Load resistance | 10Ω ±1% |
| Opposite side resistance | 510Ω ±1% (variable) |
| Power consumption | 125mW |
| Sensor current | ≤ 85mA |
| Sensor output Vb (Air) | -370 ~ -290mV |
| (1ppmAcetone) | 20 ~ 60mV |
