제품 상세 정보:
|
측정 범위: | 0-100% O2 | 신호 출력: | 10~14mV |
---|---|---|---|
응답 시간 90%: | 13 초 | 정확성 전체 규모: | + 1% |
강조하다: | PSR oxygen sensor high accuracy,gas sensor excellent stability,oxygen sensor model KE8 |

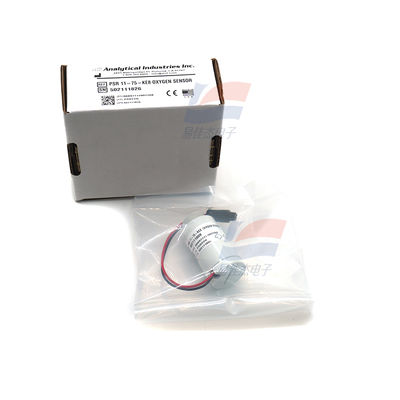

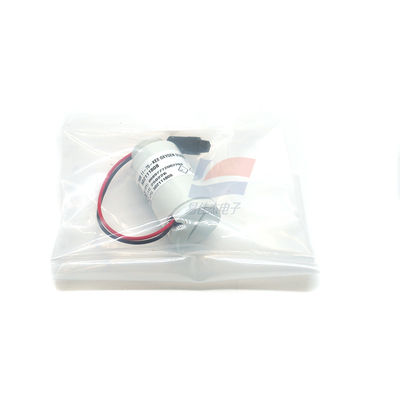

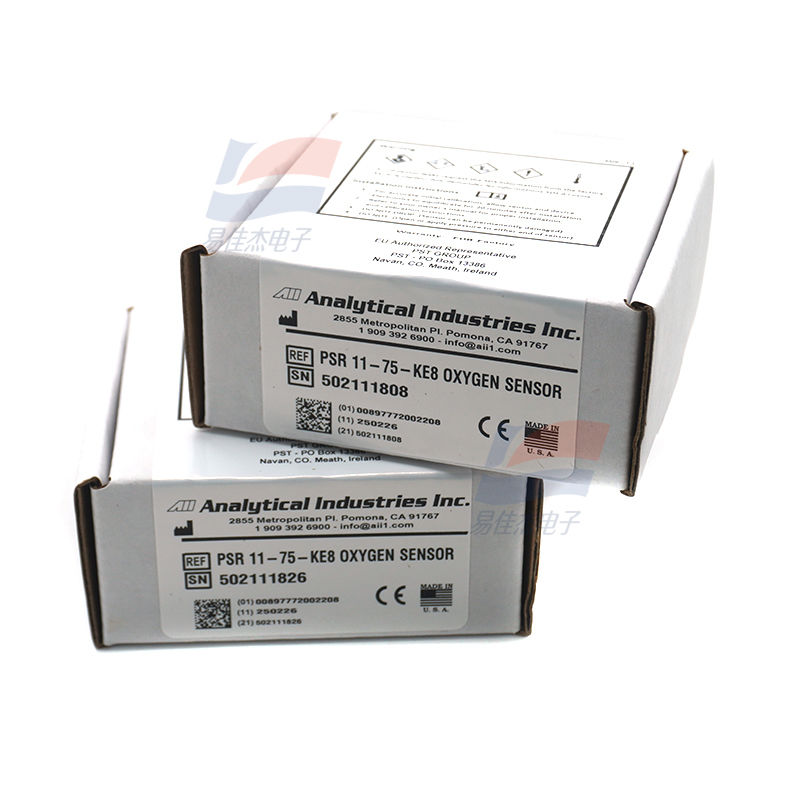

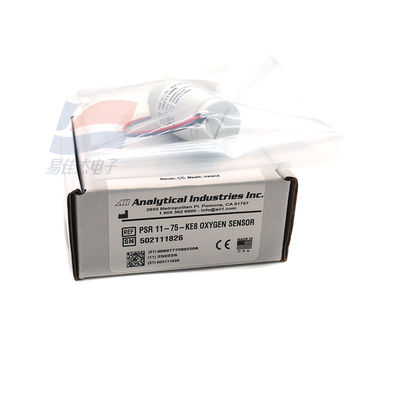

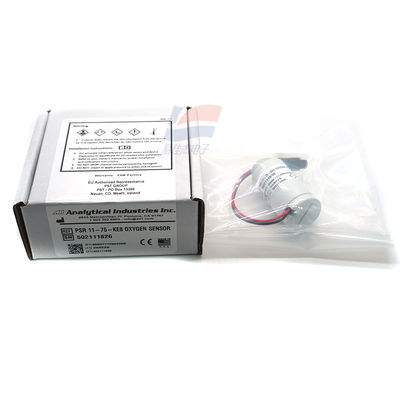

PSR 11-75-KE8 Oxygen Sensor Model Excellent Stability And Accuracy
Advanced galvanic type % oxygen sensors with excellent stability and accuracy under stringent applications. All % oxygen sensors are subjected to the most extensive stability test, output in air, 30” of water column pressure test and stability at 100% oxygen.
The widest range of oxygen sensors offered by Analytical Industries, Inc. are “Made in USA”
Accuracy FS Over Operating Temperature | + 5% |
Drift (% Signal Month) | < 1% |
Humidity non-condensing | 0-99% RH |
Temperature Coefficient | Compensated |
Operating Temperature | 0-45°C |
Operating Pressure Constant | 5-30 PSIG |
Flow Rate | 1-10 LPM |
Expected Life | 60 Months |
Storage | 0 to 40°C |
Warranty | 24 Months |
Electrical Connections Winchester | 3 Pin Connector |
