제품 상세 정보:
|
| 정격 기본 전류 (IP): | 15A RMS (연속) | 감지 범위: | ±30A |
|---|---|---|---|
| 공급 전압 (VCC): | +5V DC (± 5%) | 정지 공급 전류: | ≤20mA |
| 오프셋 전압 (VOF): | VCC/2 (유형 2.5V ± 0.04V) | 감수성: | 15A에서 1.25V (83.3MV/A) |
| 강조하다: | Open-loop Hall Effect current sensor,Solar inverter current sensor,Wind energy inverter current sensor |
||

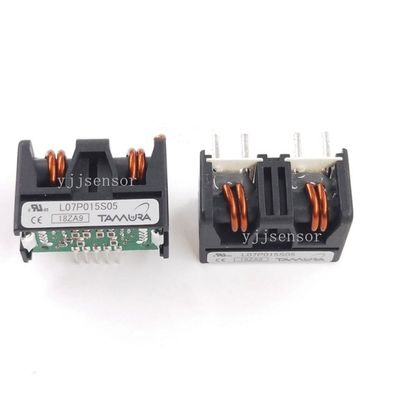

L07P015S05 Open-loop Hall Effect Current Sensor For Solar Inverters Wind Energy Inverters
Application Fields:
Suitable for low-power sections of general frequency converters, and can be used in solar inverters, wind energy inverters, motor drives, UPS systems, and other equipment for AC/DC current and pulse current detection.
Key Features:
| Product Type | Open-Loop Hall Effect Current Sensor |
| Mounting Style | PCB Mounting (25mm × 16mm footprint) |
| Core Material | Permalloy |
| Rated Primary Current (Ip) | 15A RMS (continuous) |
| Sensing Range | ±30A |
| Supply Voltage (Vcc) | +5V DC (±5%) |
| Quiescent Supply Current | ≤20mA |
| Output Type | Analog Voltage (ratiometric to supply voltage) |
| Offset Voltage (Vof) | Vcc/2 (typ. 2.5V ±0.04V) |
| Sensitivity | 1.25V at 15A (83.3mV/A |
