제품 상세 정보:
|
| 크기: | 6.2 × 6.4 mm | 압력 측정 범위: | 10-1100 MBAR (1 kPa -110 kPa) |
|---|---|---|---|
| 결의: | 0.1 mbar | ADC 결의안: | 16- 비트 |
| 인터페이스: | 3- 와이어 직렬 인터페이스 | 시스템 클럭: | 32.768kHz |
| 강조하다: | MS5540CM mobile altimeter sensor,barometric pressure sensor for meteorological systems,electronic pressure sensor for altimeters |
||

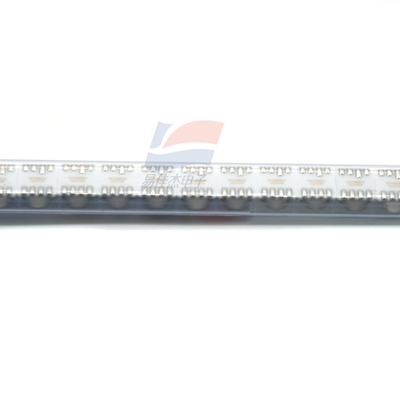

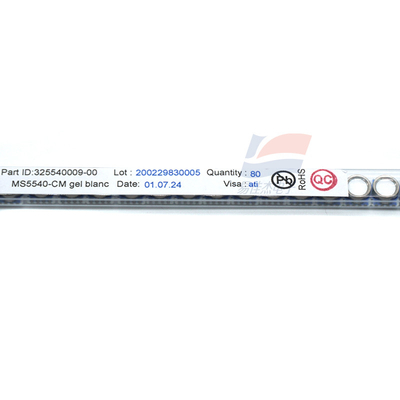

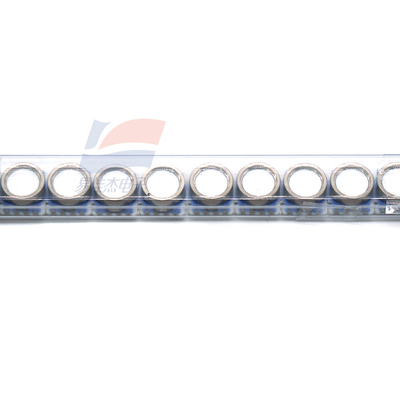

MS5540CM Pressure Sensor For Mobile Altimeters Barometers Meteorological Monitoring systems
Protection Features:
Compatibility:
Environmental Compliance:
Lead-free and RoHS compliant.
Typical Applications
| Sensor Type | Absolute - pressure sensor |
| Dimensions | 6.2×6.4 mm |
| Pressure Measurement Range | 10 - 1100 mbar (1 kPa - 110 kPa) |
| Resolution | 0.1 mbar |
| ADC Resolution | 16 - bit |
| Output | 16 - bit digital output, providing digital pressure and temperature values |
| Interface | 3 - wire serial interface |
| System Clock | 32.768 kHz |
| Operating Temperature Range | - 40℃ to 85℃ |
| Supply Voltage | 2.2 - 3.6 V |
| Operating Current | < 5 μA |
| Standby Current | < 0.1 μA |
