제품 상세 정보:
|
| 입력 전압: | DC 4.5-20V | 정적 전류: | 50uA |
|---|---|---|---|
| 출력 신호: | 0,3v (모션 감지시 출력) | 센트리 각도: | 110도 |
| 강조하다: | PRI human body sensing module,low power human sensor,GH-718A motion detection module |
||

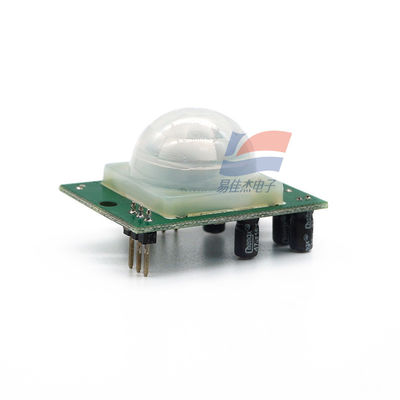

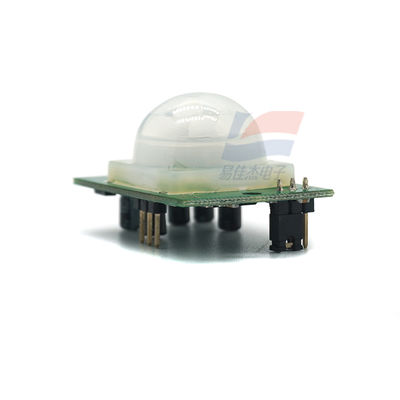

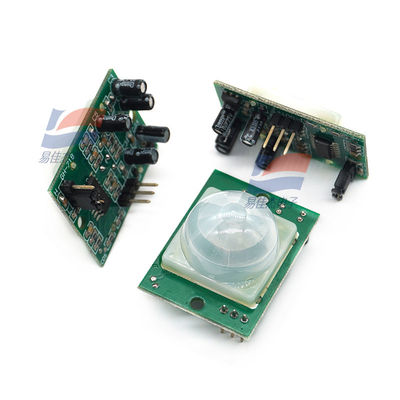

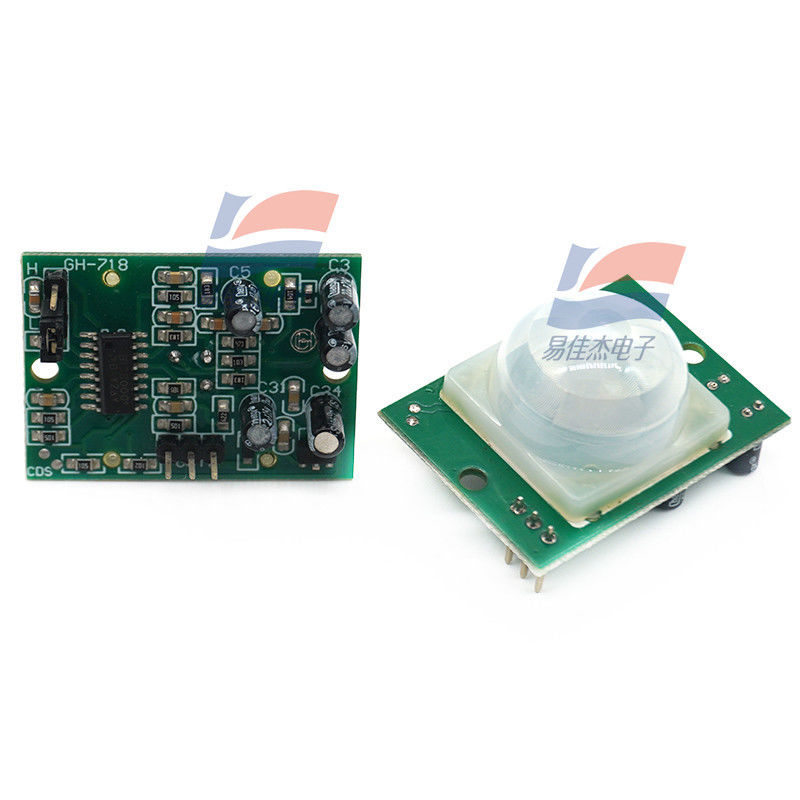

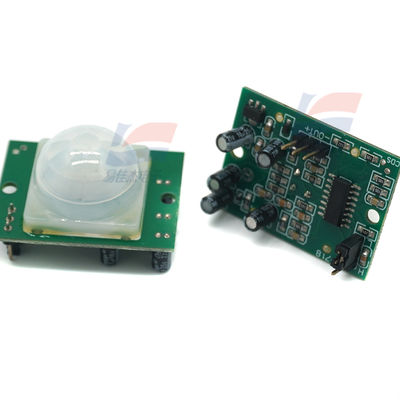

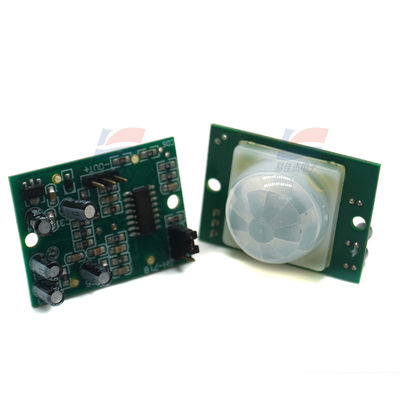

GH-718A PRI Human Body Sensing Module Low Power Consumption
Features
Use PIR pyroelectric sensor, Fresnel
Low power consumption, static power consumption 50uA
Wide voltage range, DC 4.5-20V
Small circuit board volume 38*28mm (32*24*mm)
Repeatable/non-repeatable trigger mode selection
Simple to use, power + - signal output
Sensing distance 7 meters
Sensing angle 110°
Application range:
Security products
Human body sensing toys
Induction lights
Industrial automation control
|
Sentry Distance |
Max 7 m |
| Shunt for setting overide trigger | H - Yes, L - No |
| Size | 38mm * 28mm (32mm * 24mm) |
