제품 상세 정보:
|
| 측정 범위: | 500g, 1500g | 유압식: | 힘 감지 |
|---|---|---|---|
| 출력 신호: | 아날로그 MV 신호 | 작동 온도 범위: | -40 ℃ ~ 85 ℃ |
| 저장 온도 범위: | -55 10 ~ 105 ℃ | 감수성: | 일반적으로 0.24mv/g (1500g 범위) |
| 강조하다: | FSG15N1A contact force sensor,hemodialysis blockage detection sensor,electronic pressure sensor for medical machines |
||

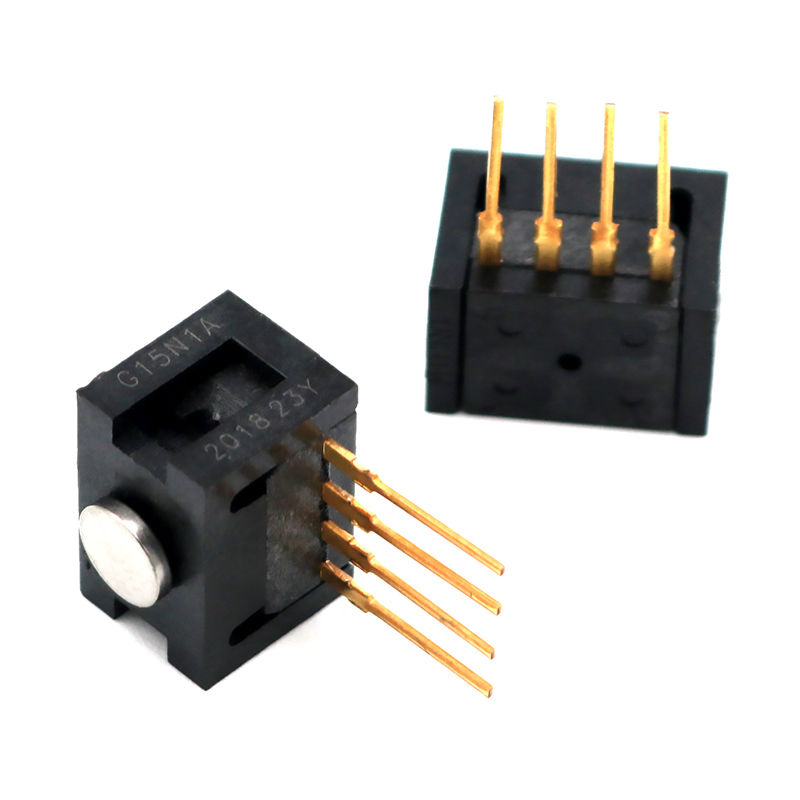

FSG15N1A Contact force sensor For Blockage Detection Hemodialysis Machines
Working Principle:
When a silicon piezoresistive element is bent by external force, its resistance increases proportionally. The external force is directly transmitted to the silicon sensing element via a stainless-steel plunger, causing the element's impedance to increase in proportion to the force. The resistance changes in the bridge circuit generate a corresponding mV output signal.
Product Features:
Typical Applications:
| Pressure Type | Force sensing |
| Output Signal | Analog mV signal1 |
| Mounting Method | PCB - mount, SMT package1 |
| Supply Voltage | Maximum 12V, typical 10VDC3 |
| Supply Current | Maximum 1.6mA, typical 1.5mA1 |
| Operating Temperature Range | - 40℃ to 85℃3 |
| Storage Temperature Range | - 55℃ to 105℃4 |
| Sensitivity | Typically 0.24mV/g (1500g range)4 |
| Linearity Error | ±0.5% span3 |
| Repeatability Error | ±0.2% span3 |
| Off - centre Loading Error | Low3 |
| Minimum Resolution | 1g1 |
| Deflection | Typically 30 microns at full scale3 |
| Response Time | 1ms1 |
| Over - pressure Tolerance | Up to 5.5kg |
