제품 상세 정보:
|
| 유압식: | 진공, 계측기 | 작업 압력: | 250 PSI |
|---|---|---|---|
| 정확성: | 0.4% | 출력 유형: | 아날로그 |
| 설치 방식: | 구멍을 통해 | 패키지 / 주택: | PDIP-4 |
| 강조하다: | medical device pressure sensor,250 psi pressure sensor,plate interface pressure sensor |
||
Product Description:

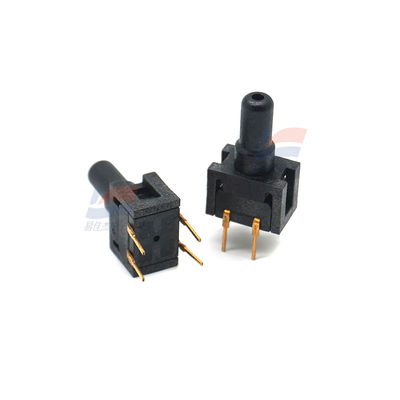

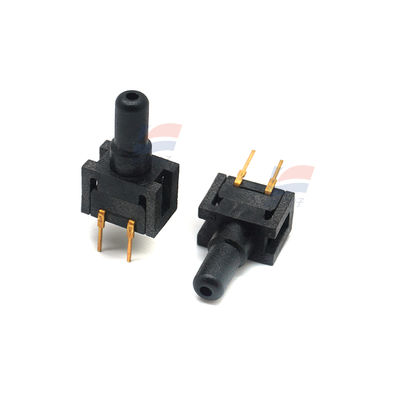

YJJ 26PCGFA2G 250 Psi Plate Interface Pressure Sensor Is Used In Medical Devices
Features:
26PC series miniature pressure sensors are compact and cost-effective devices, suitable for both wet and dry media. These sensors employ proven sensing technology and utilize specialized piezoresistive micro-machined sensing elements, offering high performance, reliability, and accuracy. Each sensor contains four active piezoresistors, forming a Wheatstone bridge. When pressure is applied, the resistance changes, and the sensor provides a millivolt output signal proportional to the input pressure.
The low-power 26PC sensors are designed to accommodate pressures ranging from 1 psi to 250 psi and have an operating temperature range of -40ºC to 85ºC [-40ºF to 185ºF]. These sensors can accommodate a variety of wet and dry media compatible with the polyphenylene terephthalamide (PPA) plastic and the sealing media specified in the naming convention and order guidelines.
The 26PC sensors comply with the RoHS standard. Their design and manufacture adhere to the ISO 9001 standard. What makes our sensors better? Wet/wet capability (i.e., liquids on both ports) Selectable sealing elements that match the used medium Higher pressure range for high-pressure applications Multiple pressure port types Provide SIP and DIP packages simultaneously
Features and Benefits: One sensor can perform two tasks! It provides liquid sensing in differential applications. The temperature range is from -40°C to 85°C, allowing for use in various environmental conditions. The pressure range is between 1 PSi and 250 PSi, providing flexibility for the customer's pneumatic design. Differential and gauge pressure measurement types allow customers to choose the sensor that suits their application.
Product Type: Board Mount Pressure Sensors
Pressure Type: Vacuum, Gauge
Working Pressure: 250 psi
Accuracy: 0.4%
Output Type: Analog
Installation Style: Through Hole
Package / Housing: PDIP-4
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +85°C
Series: 26PC
Trademark: Honeywell 25
Subcategory: Sensors
Maximum power supply voltage: 10 V
Unit weight: 2 g
Specifications:
| Minimum operating temperature | -40 °C |
| Maximum operating temperature | +85 °C |
| Maximum power supply voltage | 10 V |
| Unit weight | 2g |
