제품 상세 정보:
|
| 측정 범위: | 0-30psi | 정확성: | 1% |
|---|---|---|---|
| 출력 유형: | 아날로그 | 설치 방식: | SMD/SMT |
| 포트의 크기: | 2.3 밀리미터 | 하위범주: | 센서 |
| 강조하다: | industrial automation pressure sensor,30 psi board interface sensor,electronic pressure sensor for automation |
||
Product Description:

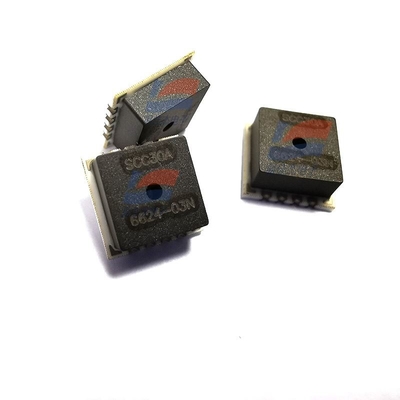

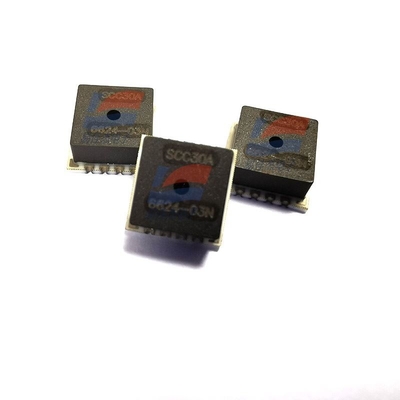

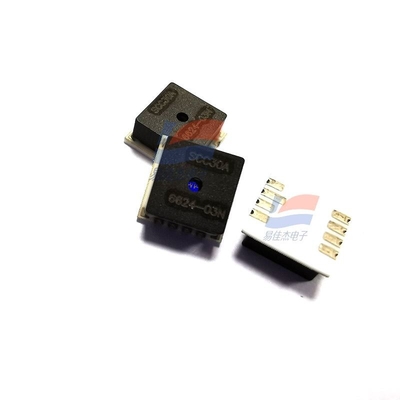

SCC30ASMT Board Interface Pressure Sensor 0 To 30 Psi For Industrial Automation Applications
Features:
SCC30ASMT is a piezoresistive pressure sensor, mainly used for measuring absolute pressure (i.e., the pressure of the medium relative to vacuum).
Its key features include:
Surface Mount Technology (SMT process)
Measurement range: 0 - 30 psi
Uses piezoresistive technology (pressure detection is achieved through the deformation of a silicon diaphragm and the resulting change in resistance)
Response time: only 100 microseconds Typical application scenarios
Industrial Automation: Suitable for hydraulic/pressure control systems that require rapid response, such as pressure monitoring modules in automated equipment.
Electronic devices: May be used for internal pressure detection in electronic devices, such as the pressure sensor components found in consumer electronics.
Automotive industry: It can monitor parameters such as engine lubricating oil pressure and fuel system pressure.
The specific application depends on the actual product parameters:
Pressure Type: Gauge, Differential
Working Pressure: 0 psi to 30 psi
Accuracy: 1%
Output Type: Analog
Installation Style: SMD/SMT
Port Type: No Port
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C
Series: SCC SMT
Working Power Supply Current: 1.5 mA
Port Size: 2.3 mm
Product Type: Board Mount Pressure Sensors 5
Subcategory: Sensors
Specifications:
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Series | SCC SMT |
| Working Power Supply Current | 1.5 mA |
