제품 상세 정보:
|
| 검출 원리: | 전기 화학 3 전극 | 검출 가스: | NH3 |
|---|---|---|---|
| 탐지 범위: | 0-100ppm | 최대 부하 집중: | 200ppm |
| 강조하다: | ammonia gas sensor electrochemical,high precision gas sensor,long life ammonia sensor |
||

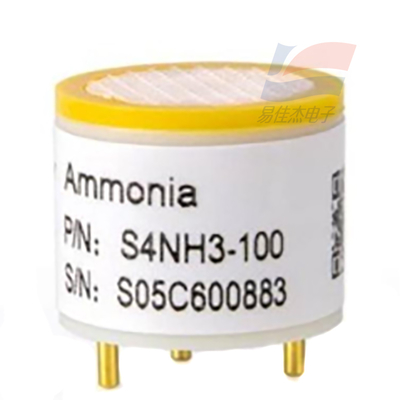

S4NH3-100 Ammonia Gas Sensor Electrochemical Three electrodes High Precision And long Service Life
Product Overview
S4-NH3 sensor is a constant potential electrolytic sensor. The ammonia gas and oxygen will undergo corresponding oxidation-reduction reaction on the working electrode and the counter electrode respectively and release charge to form current. The generated current is proportional to the ammonia concentration. The ammonia concentration can be determined by measuring the current.
High precision and long service life
Fast response and zero return
Low power consumption and high sensitivity
Wide linear range, strong anti-interference ability
Excellent repeatability and stability
Application Field
Ammonia alarm
Ammonia gas detection at industrial site
Ammonia gas detection in animal husbandry
Smart municipal ammonia detection
Ammonia detection in atmospheric environment
|
Maximum load concentration
|
200PPM |
| Output signal | 160±40nA/PPM |
| Zero drift | 0~4PPM |
| Resolution | 1PPM |
| Response time | <90s |
| Bias voltage | 0 |
| Load resistance | 5~30Ω |
| Working Temperature | -30℃-50℃ |
| Working Humidity | 15%RH to 90%RH(no condensation) |
| Repeatability | ＜±2% output signal |
| Long-term stability | ＜2% signal/month |
| Work pressure | 90 to 110 kPa |
| Shelf life | 12 months after delivery |
| Service life | 2 years |
