제품 상세 정보:
|
| 감광성 영역: | 2.8 × 2.4 mm | 스펙트럼 응답 범위: | 590 ~ 720 nm |
|---|---|---|---|
| 암전류(최대): | 0.02 NA | 말단의 캐패시턴스: | 200 pF |
| 강조하다: | RGB color sensor for plastic detection,UV photodiode sensor monochromatic,RGB sensor detect plastic color |
||

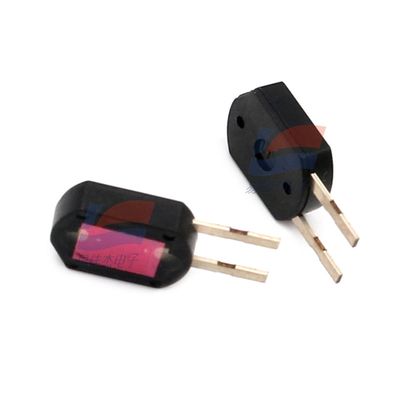

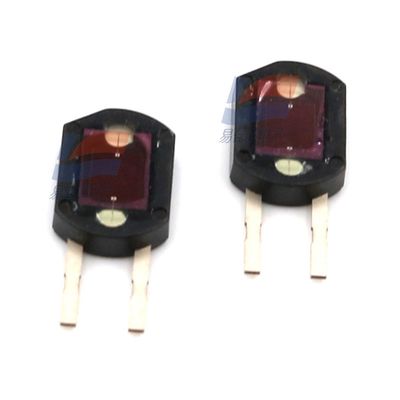

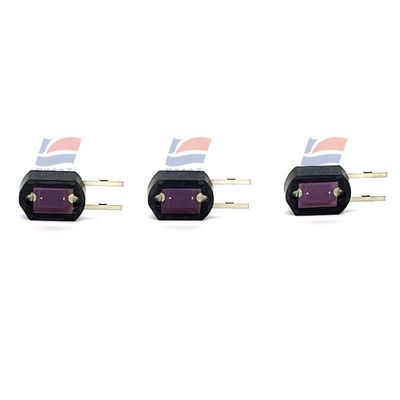

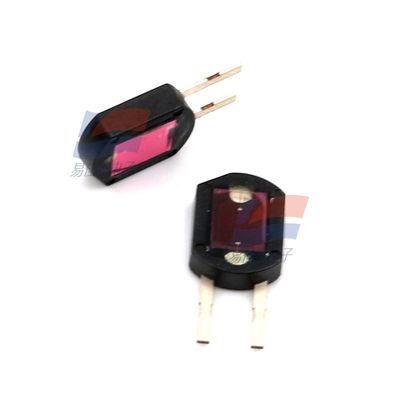

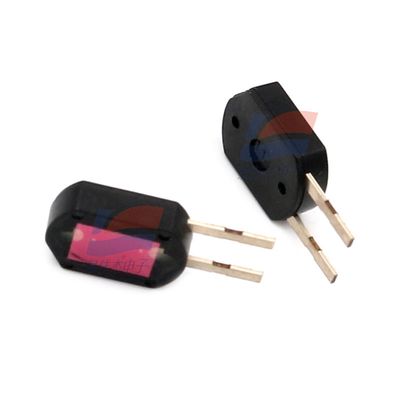

S6430-01 RGB Color Sensors Detect Monochromatic Plastic
RGB color sensor
The S6430-01 is a color sensor designed to respectively detect monochromatic colors of red (λp=660 nm).
Features
-Plastic package (6 × 8 mm)
-Spectral response range: 590 to 720 nm (λp=660 nm)
-Insensitive to near IR range
-High sensitivity: 0.45 A/W Typ. (λ=λp)
-Low dark current
|
Rise time
|
0.5 μs |
| Note | For red |
| Reverse Voltage | 10V |
| Operaturing Temperature | -10 to +60℃ |
| Storage Temperature | -20 to +70℃ |
