제품 상세 정보:
|
| Negative Pressure: | 0.5V | Standard Output: | 2.5V |
|---|---|---|---|
| Positive Pressure: | 4.5V | Response time: | 2ms |
| 강조하다: | Piezoresistive pressure sensor long term stability,APR5852 pressure sensor high stability,Industrial piezoresistive sensor reliable performance |
||

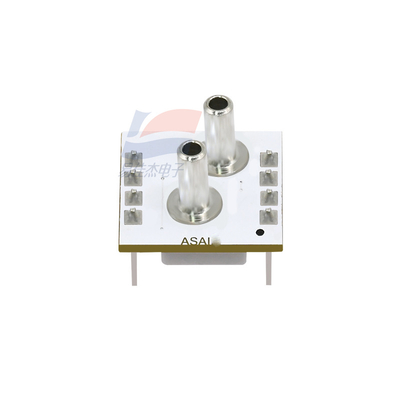

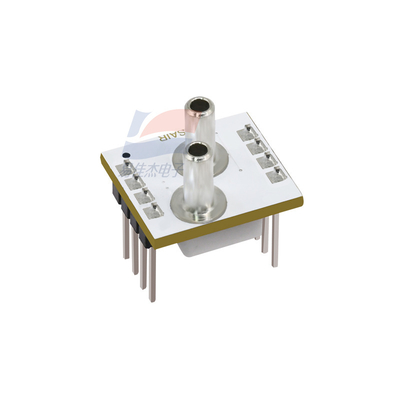

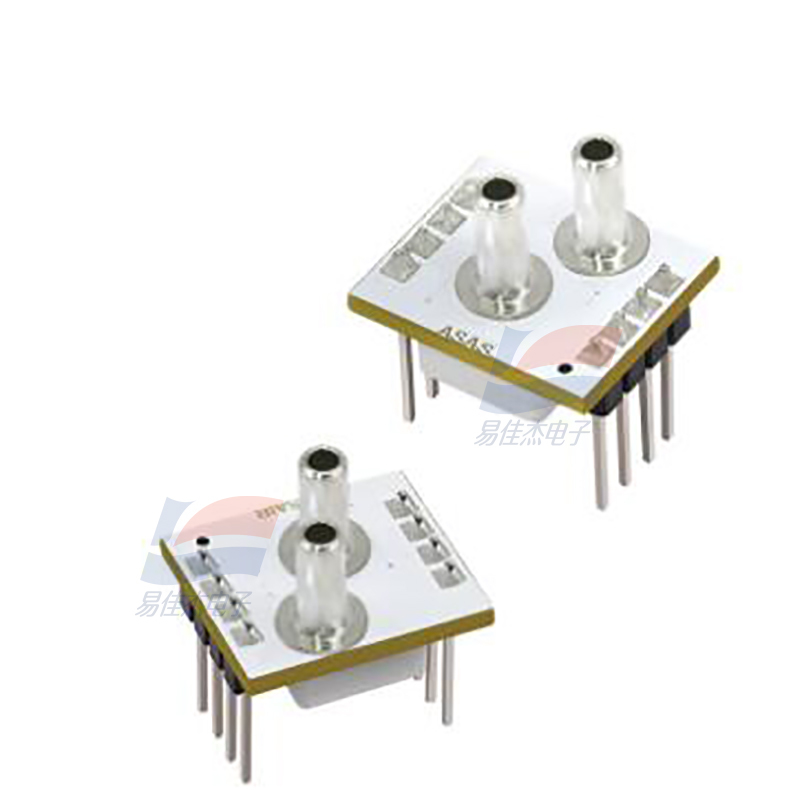

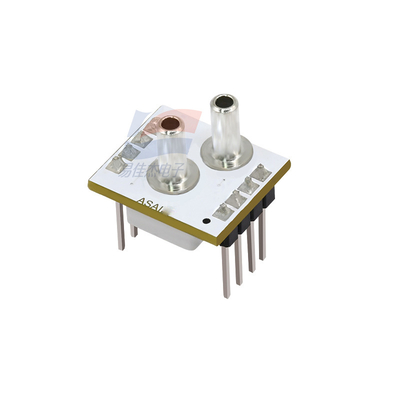

APR5852 Piezoresistive Pressure Sensors Excellent long Term Stability
Product description
APR5852 series products are temperature-compensated silicon piezoresistive pressure sensors, equipped with a dedicated ASIC chip and silicon microstructure pressure sensor chip, with pin-type connectors, and a dual-in-line package structure, which can be directly mounted on a standard PCB on the board for easy integration and replacement. The pressure value measured by APR5852 series products will be output in the form of analog voltage after the conversion of the sensor and the amplification of the circuit. Has excellent accuracy and long-term stability. Each
sensor has been strictly calibrated and tested before leaving the factory to ensure and meet the large-scale applications of customers.
Piezoresistive Pressure Sensors
* Fully calibrated
* Amplified, calibrated and temperature compensated with high output span
* Excellent long-term stability
* Dual in-line package is easy to use
* Quick response and strong anti-interference ability
* Multi-order pressure and temperature nonlinear correction
Specification:
| Operating temperature | -40~125℃ |
| Storage temperature | -50~+135℃ |
| Supply voltage | 4.75-5.25V |
