제품 상세 정보:
|
| 칩 사이즈: | 1.5 × 1.5 mm2 | 민감한 부위: | 1.0 × 1.0 mm2 |
|---|---|---|---|
| 검출 각도: | FOV 87 ° | 저항력: | 150 ± 20 kΩ |
| 강조하다: | TO-46 infrared thermopile sensor,differential voltage output sensor,infrared photoelectric thermopile sensor |
||

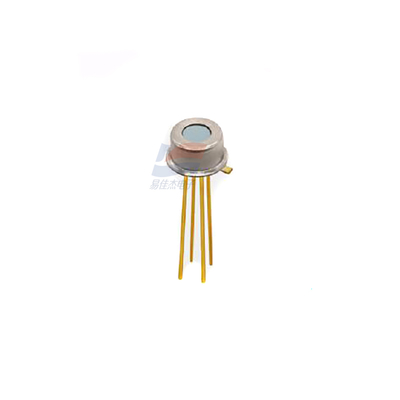

AS907CCA Infrared Thermopile Sensor TO-46 Packing Differential Voltage Output
Infrared thermopile sensor
* MEMS thermopile technology
* Fast response
* Non-contact infrared temperature measurement
* With NTC compensation
* TO-46 metal tube package
* Widely used
AS907CCA is an infrared thermopile sensor with differential voltage output, suitable for non-contact temperature measurement scenarios, such as refrigerators, car air conditioners, indoor heating, household appliances, handheld devices and medical equipment applications. The sensor is packaged in a TO-46 metal tube shell, which contains a MEMS thermopile sensor chip and a thermistor NTC chip. The product has the advantages of non-contact, small size, high accuracy and low cost.
Application Scope
AS907CCA is suitable for scenarios that require non-contact temperature measurement, such as household appliances such as refrigerators, range hoods and air conditioners, car air conditioners, indoor heating, handheld devices, and medical equipment applications.
Specification:
| Responsivity | 80 V/W |
| Time constant | 25 ms |
| Equivalent noise power | 0.7 nW/Hz1/2 |
| Detection rate | 1.6E08 cmHz1/2/W |
