제품 상세 정보:
|
| Nominal Range: | 0 ~ 50 ppm | Maximum Overload: | 100 ppm |
|---|---|---|---|
| Sensitivity: | 0.6 ± 0.2 μAppm | Response Time (T90): | ≤ 30S |
| 강조하다: | 4 Series gas silane sensor,electrochemical gas sensor,4SIH4-20 silane detector |
||

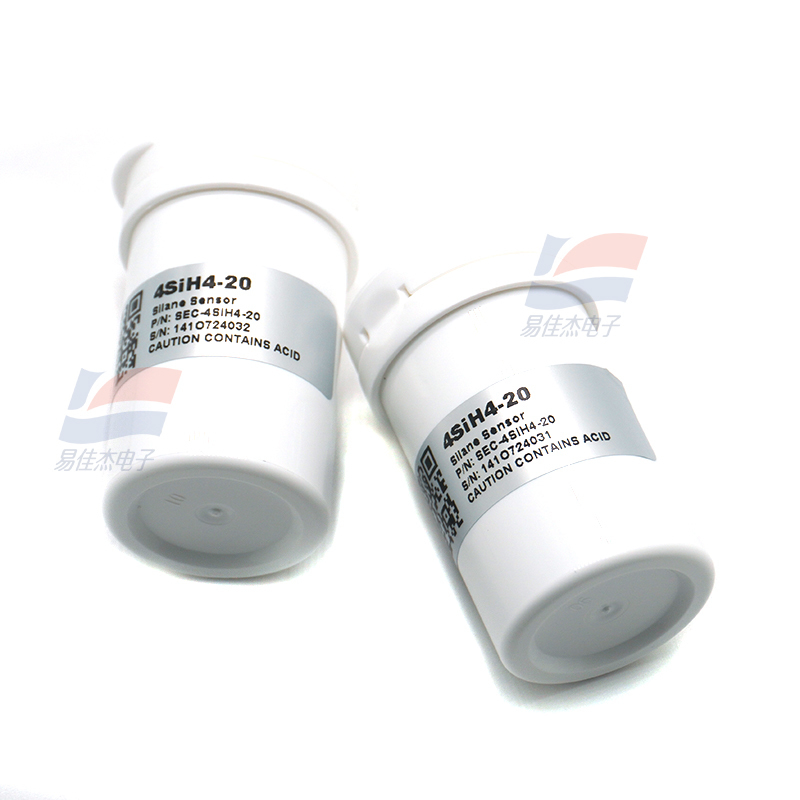

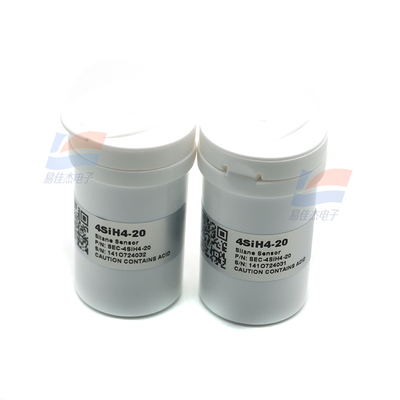

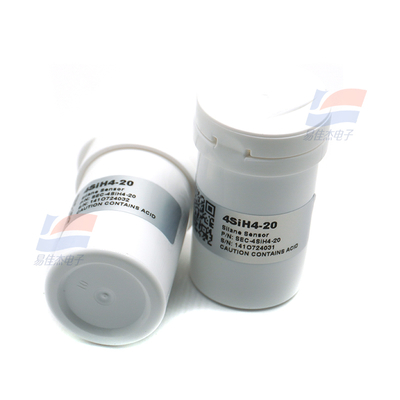

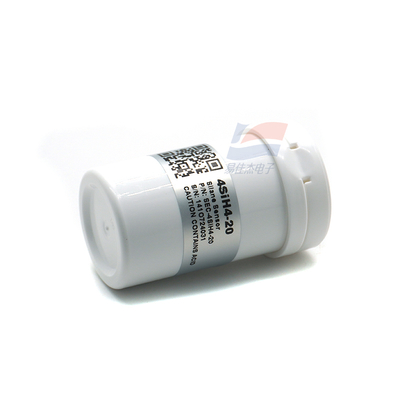

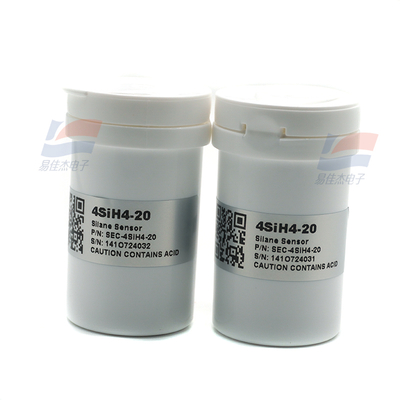

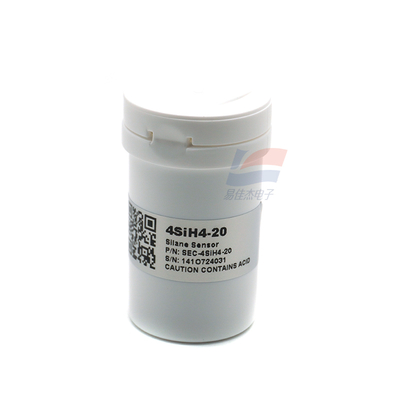

4SIH4-20 079-0100-000 Gas Silane Sensors Electrochemical 4 Series
This sensor is designed for the measurement of Silane concentration in gas phase. It can be used as a pin-to-pin replacement for the standard
4-series electrochemical Silane sensors made by other manufacturers.
Specification:
| Zero Signal (20°C) | < ±0.2 μA |
| Baseline Shift (-20°C ~ 50°C) | < 0.2 ppm |
| Baseline Shift (-20°C ~ 50°C) | < 0.2 ppm |
| Resolution | 10 ppb |
| Bias Voltage | 0 mV |
Environmental
| Temperature Range | -20°C ~ 50°C |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
Life Time
| Long Time Output Drift | < 2% signal/month |
| Recommended Storage Temp | 10°C ~ 30°C |
| Expected Operating Life | 1 years in clean air |
| Storage Life | 6 months in original packaging |
| Warranty | 12 months |
