제품 상세 정보:
|
| 운영 환경: | -10 - 50℃ | 치수: | 49.2 * 31.6 * 10.7mm |
|---|---|---|---|
| 전원 공급 장치: | 4.75-5.25V | 측정 범위: | 400 - 5000 ppm |
| 정확성: | ± (50 ppm + 5% Rd) | 샘플링 주기: | 2s |
| 강조하다: | NDIR CO2 sensor module,high precision carbon dioxide detector,infrared CO2 gas sensor |
||
Product Description:

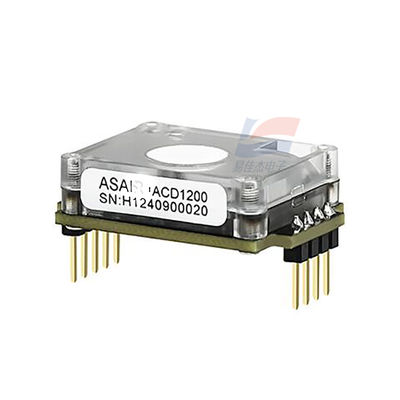

YJJ ACD1200 NDIR Principle Carbon Dioxide Infrared Sensor Module - High Precision CO2 Concentration Detection
Features:
ACD1200 Infrared Carbon Dioxide Sensor
It responds quickly, has a short recovery time, and has strong anti-interference ability.
The ACD1200 uses the non-dispersive infrared (NDIR) principle to detect the concentration of carbon dioxide in the air. The ACD1200 has excellent selectivity, no oxygen dependence, and a long lifespan; it also has a digital interface output, making it convenient to use. The ACD1200 is a high-performance sensor that integrates infrared absorption gas detection technology, precise optical path, and high-precision signal detection circuit.
The ACD1200 has a wide range of applications and is suitable for use in air quality monitoring equipment, fresh air systems, air purification equipment, HVAC and refrigeration equipment, etc.
Infrared carbon dioxide sensor APM10/APM2000
Laser particulate sensor
Power supply: 4.75 - 5.25V
Measurement range: 0 - 1000 μg/m3
Measurement particle size: 0.3 - 10 μm
Accuracy: ±15 μg/m3 (0 - 100 μg/m3)
±15% of reading (100 - 1000 μg/m3)
Sampling period: 1s
Operating environment: -10 - 50℃
Dimensions: 49.2 * 31.6 * 10.7mm
Power supply: 4.75 - 5.25V
Measurement range: 400 - 5000 ppm
Accuracy: ±(50 ppm + 5% RD)
Sampling period: 2s
Operating environment: 0 - 50℃, 0 - 95% RH (no condensation)
Output mode: I2C/UART
Dimensions: 22 * 33 * 14.5mm
Specifications:
| Power supply | 4.75 - 5.25V |
| Temperature | -40℃ ~ +80℃ |
| Response time | 2s |
| Output mode | 0 - 10V DC / 4 - 20mA |
