제품 상세 정보:
|
| 측정 범위: | 0-1000 ppm | 해결: | 4 ppm |
|---|---|---|---|
| 출력 신호: | 25 ± 8 NA/PPM | 온도 범위: | -40°C ~ 40°C |
| 압력 범위: | 표준 대기압 | 응답 시간: | T90 <35 초 |
| 습도 범위: | 15% ~ 90% RH | 장기 드리프트: | <5% / 6 개월 |
| 강조하다: | NH3 gas sensor for pig farms,agricultural lab ammonia sensor,SR-1000-S NH3 gas detector |
||
Product Description:

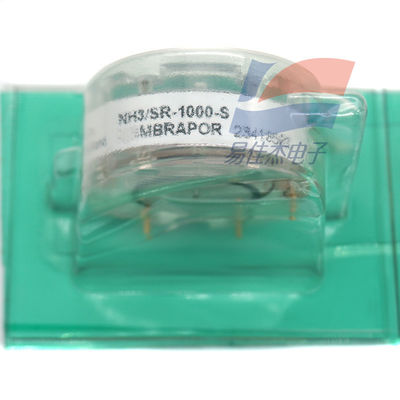

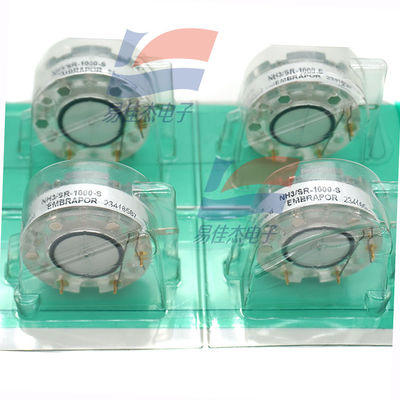

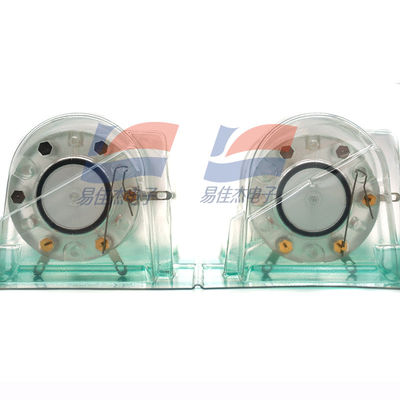

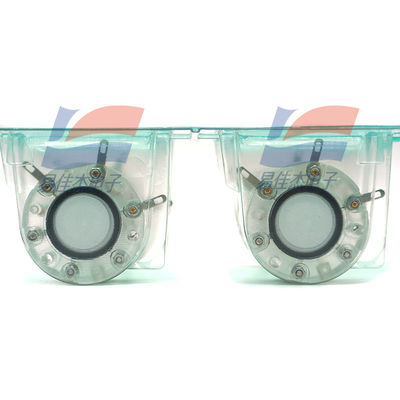

YJJ NH3/SR-1000-S NH3 Gas Sensor Dedicated To Agricultural Laboratories On Pig Farms
Features:
First, NH3 gas detector sensor selection NH3 ammonia leakage gas sensor transmitter Pig farm agricultural laboratory special
2. Product parameters
Product name: On-line analysis ammonia sensor NH3/SR-1000-S
Key words: farm NH3 management
Product features: Good stability, short response time, special laboratory
Main product parameters:
Measuring range: 0 ~ 1000ppm
Z Large load: 2000ppm
Working life: 2 years in the air
Output signal: 25±8nA/ppm
Resolution: 4ppm
Temperature range: -40°C to 40°C
Pressure range: standard atmosphere
Response time (T90) : <35sec
Relative humidity range: 15% to 90%
Zero output: 0ppm ± 16ppm
Z Maximum zero drift (20°C to 40°C) : -8 PPM
Long-term output drift: < 5% per 6 months
Recommended loading resistance: 10 Ω
Bias voltage: No need
Specifications:
| Long-term drift | <5% / 6 months |
| Recommended load value | 10Ω |
| Bias voltage | Not required |
| Linearity output | Linear |
