제품 상세 정보:
|
| 압력 유형: | 진공, 게이지 | 작동 압력: | 30 psi |
|---|---|---|---|
| 정확성: | 0.4% | 출력 유형: | 비슷한 물건 |
| 강조하다: | through hole pressure sensor SIP4,board mount pressure sensor 26PCDFA6G,electronic pressure sensor with warranty |
||

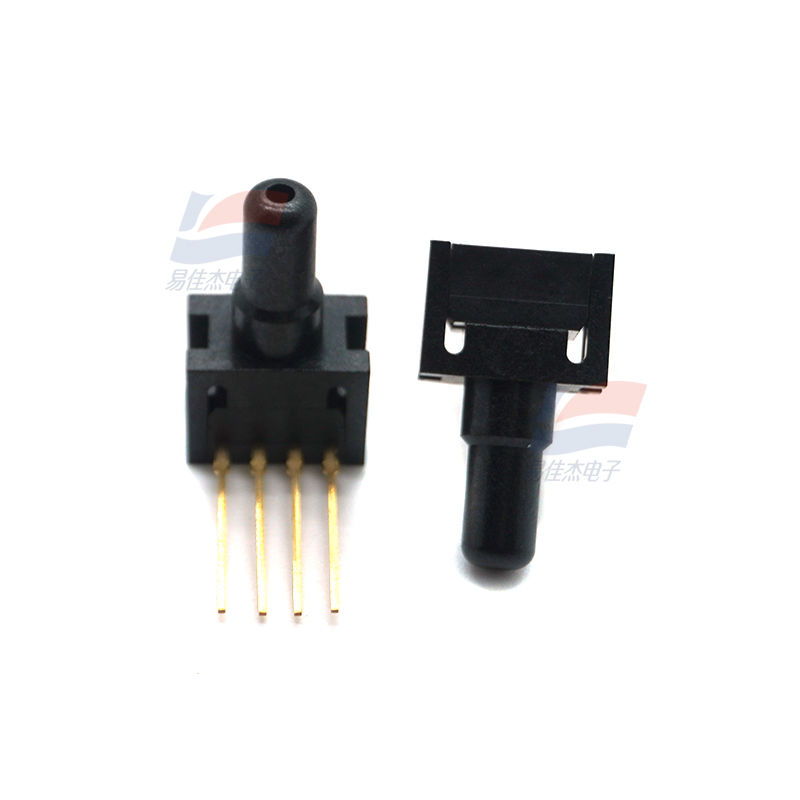

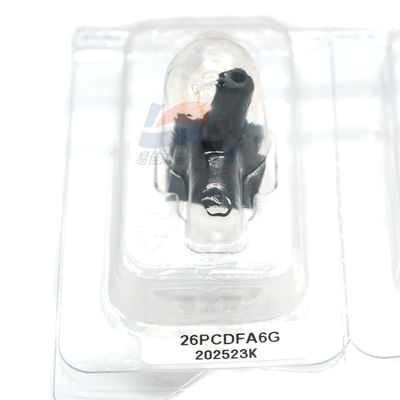

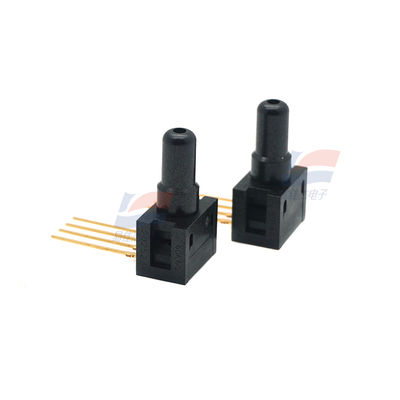

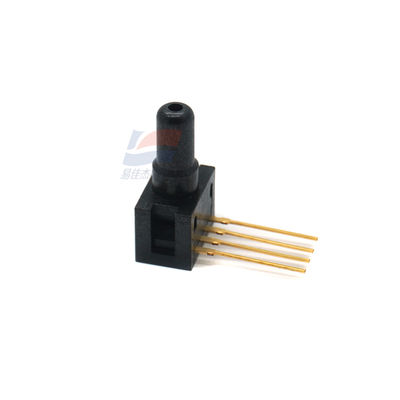

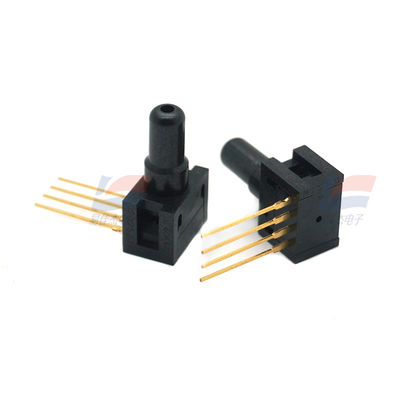

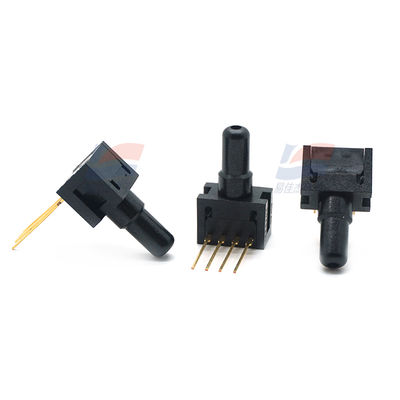

26PCDFA6G Board Mount Pressure Sensors Through Hole SIP4 Packing
Miniature Low Pressure Sensors 26PC Series, Compensated/Unamplified 1 psi to 250 psi
The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is
proportional to the input pressure.
|
Mounting Style
|
Through Hole |
| Operating Supply Voltage | 10 V |
| Port Type | Single Axial Barbless |
| Package / Case | SIP-4 |
| Minimum Operating Temperature | - 40℃ |
| Maximum Operating Temperature | + 85℃ |
| Port Size | 0.2 in |
| Supply Voltage - Max | 16 V |
| Unit Weight | 0.070548 oz |
