제품 상세 정보:
|
| 작동 압력 범위: | 0kPa ~ 200kPa | 감광도: | 0.2 mV/KPA |
|---|---|---|---|
| 공급전류: | 6mA | 작동 온도 범위: | -40 ° C ~ +125 ° C |
| 강조하다: | MPX2200DP pressure sensor for robotics,silicon piezoresistive pressure sensor,electronic pressure sensor for level indicators |
||

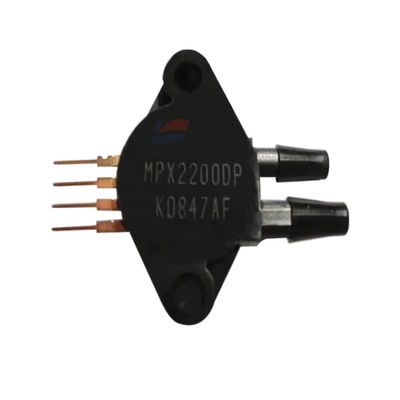

MPX2200DP Silicon Piezoresistive Pressure Sensor For Robotics Level Indicators Pressure Switching
Features:
Applications:
| Pressure Type | Differential |
| Operating Pressure Range | 0 kPa to 200 kPa |
| Maximum Overload Pressure | 800 kPa |
| Sensitivity | 0.2 mV/kPa |
| Output | Wheatstone bridge, typical full - scale output is 40 mV |
| Supply Voltage | Minimum 10 V, maximum 16 V |
| Supply Current | 6 mA (typical) |
