제품 상세 정보:
|
| 시리즈: | 180pc | 포장: | 대부분 |
|---|---|---|---|
| 공급현황: | 활동적인 | 애플리케이션: | 보드 마운트 |
| 압력 유형: | 노출된 계측기 | 작동 압력: | 100 psi (689.48kpa) |
| 강조하다: | industrial pressure sensor 100 psi,electronic pressure sensor for monitoring,pressure sensor with 100 psi range |
||
Product Description:

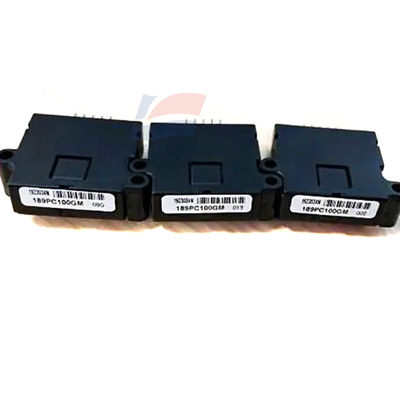

YJJ 189PC100GM An Industrial Pressure Sensor Capable of Measuring Up to 100 Psi Used for Pressure Monitoring
Features:
Main parameters are as follows:
Measurement range and power supply
Pressure range: 0 - 100 psi (pounds per square inch)
Operating voltage: 7V to 16V
Environmental specifications
Temperature range: -40°C to 85°C
Package form: DIP6 (Industrial standard package) Performance indicators
Sensitivity: Not specified, but the common sensitivity range for similar products is 100 mV/g to 500 mV/g (for example, acceleration sensors)
Frequency response: Not specified, but most industrial sensors are calibrated below 100Hz
Application description
Suitable for industrial pressure monitoring scenarios, and the power supply and signal processing methods need to be adjusted according to the specific equipment parameters.
Description SENSOR GAUGE 0-100 PSI
Series 180PC
Packaging Bulk
Supply status Active
Application Board Mount
Pressure type Vented Gauge
Working pressure 100 PSI (689.48kPa)
Output type Analog Voltage
Output 1 V ~ 7 V
Accuracy -
Voltage - Power supply 7V ~ 16V
Port size Male - 0.37"" (9.4mm) Tube
Port style Barbless
Features Amplified output, Temperature compensated
Termination style PC Pin
Maximum pressure 250PSI (1723.69kPa)
Operating temperature -40°C ~ 85°C
Package 6-DIP Module
Specifications:
| Pressure range | 0 - 100 psi |
| Operating voltage | 7V to 16V |
| Temperature range | -40°C to 85°C |
| Package form | DIP6 |
| Sensitivity | Not specified |
