제품 상세 정보:
|
| 공칭 범위: | 0 ~ 20 ppm | 최대 과부하: | 50 ppm |
|---|---|---|---|
| 감도(20℃): | -1.00 ± 0.25 μa/ppm | 응답 시간 (T90): | ≤ 45s |
| 강조하다: | electrochemical ozone gas sensor,20ppm ozone gas detector,7 series gas sensor |
||

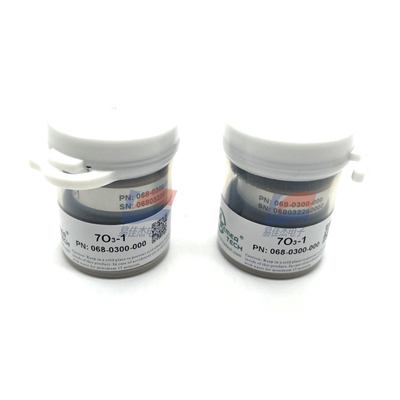

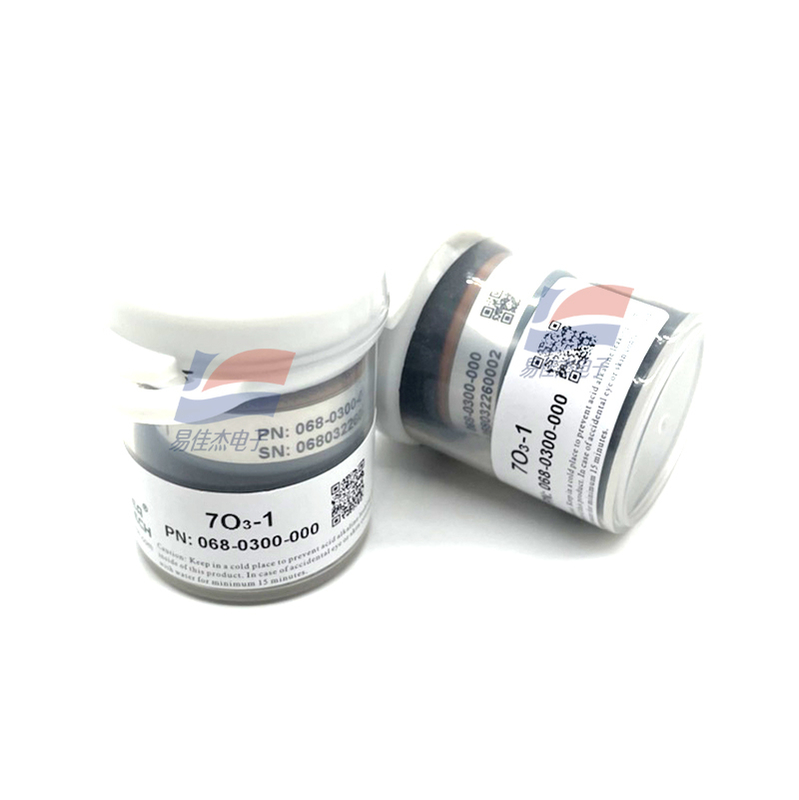

7O3-1 068-0300-000 Ozone Gas Sensors Electrochemical 7 Series 20PPM
Product Description
This sensor is designed for the measurement of Ozone concentration in gas phase. It can be used as the pin-to-pin replacement of the standard 7-series electrochemical Ozone sensors made by the other manufacturers.
Performance Characteristics
|
Zero Signal (20℃)
|
< ±0.2 μA |
| Baseline Shift | (-40℃ ~ 50℃) < 0.1 ppm |
| Resolution | 0.05 ppm |
| Linearity | Linear up to 20 ppm |
| Bias Voltage | 0 mV |
Environmental
|
Temperature Range
|
-40℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 atm |
| Humidity Range | 15% ~ 90%RH non-condensing |
