제품 상세 정보:
|
| 공칭 범위: | 0 ~ 20 ppm | 최대 과부하: | 20 ppm |
|---|---|---|---|
| 감도 (20 ° C): | 0.45 +0.10 μAVPPM | 응답 시간 (T90): | ≤90s |
| 강조하다: | 7SO2-20 sulfur dioxide gas sensor,electrochemical gas sensor 20ppm,7 series sulfur dioxide sensor |
||

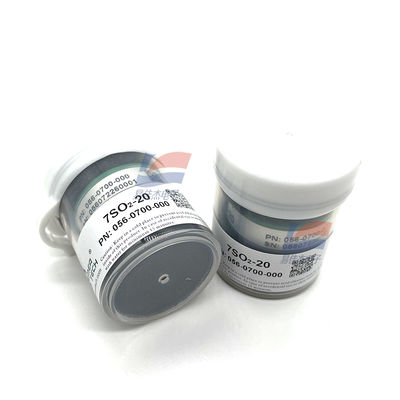

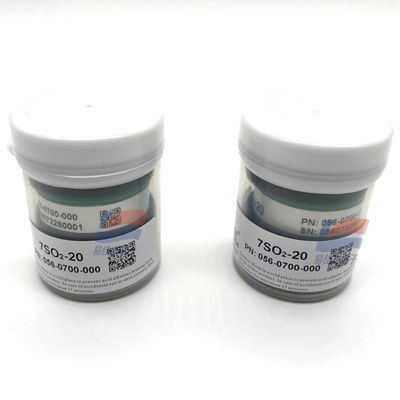

7SO2-20 Sulfur Dioxide Gas Sensors Electrochemical 7 Series 20PPM
Description
This sensor is designed for the measurement of Sulfur Dioxide concentration in the gas phase with no sensitivity loss over time and no cross-sensitivity from H2S. It can be used as a replacement for the standard 7-series EC Sulfur Dioxide sensors available on the market.
Performance Characteristics
| Zero Signal (20°C) | < +0.2 μA |
| Baseline Shift (-20°C~60°C) | <0.5 ppm |
| Resolution | 0.01 ppm |
| Linearity | Linear up to 20 ppm |
| Bias Voltage | 0 mV |
Environmental
| Temperature Range | -20°C-60°C |
| Pressure Range | 1 +0.1 atm |
| Humidity Range | 5%~95%RH non-condensing |
