제품 상세 정보:
|
| 범위: | 0-10psi | 정확성: | 전체 스케일 (FS)의 ± 0.2% |
|---|---|---|---|
| 출력 신호: | 156-294 MV | 전원 공급 장치 전압: | 10 v DC |
| 매체 호환성: | 비부식성 가스 | 제로 포인트 오프셋: | -30 ~ +30 MV |
| 선형성: | ±0.25%FS | 응답 시간: | 1ms |
| 강조하다: | medical differential pressure sensor 100PSI,24PC series pressure sensor medical,electronic pressure sensor with warranty |
||
Product Description:

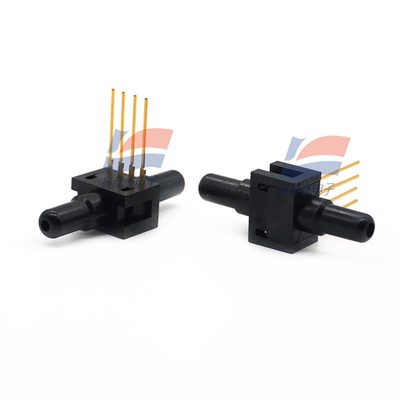

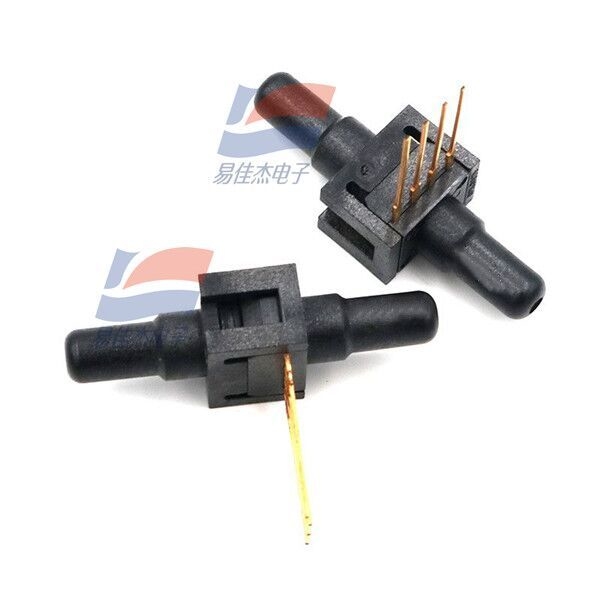

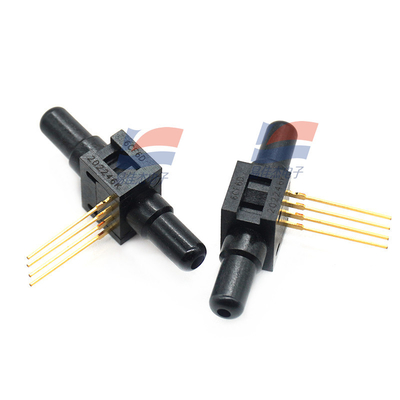

YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor
Features:
Detailed parameter description of the 24PCFFA6D pressure sensor:
1. Basic Parameters
Brand: Honeywell
Pressure Type: Differential
Range: 0 - 100 psi (approximately 6.9 bar)
Accuracy: ±0.2% of Full Scale (FS)
Output Signal: 156 - 294 mV (non-amplified analog output)
Power Supply Voltage: 10 V DC (allowable range 10 ± 0.01 VDC)
Medium Compatibility: Non-corrosive gases/liquids such as nitrogen, oxygen, water, etc.
2. Performance Indicators
Zero Point Offset: -30 to +30 mV (typical value 0 mV)
Linearity: ±0.25% FS (optimal fitting straight line)
Repeatability & Hysteresis: ±0.15% FS
Response Time: 1 ms
Temperature Drift:
Zero Point Drift: ±2.0 mV (0 - 50℃)
Sensitivity Drift: ±5.0% FS (25 - 50℃)
Long-Term Stability: ±0.5% FS per year
3. Environmental Adaptability
Operating Temperature: -40 to +85℃
Storage Temperature: -55 to +100℃
Protection Grade: Not explicitly stated, but meets industrial-level sealing requirements
4. Physical Characteristics
Electrical Connection: Wire Leads
Weight: Approximately 2 g
Certification: Passed vibration (20g, 0 - 2kHz) and shock (150g) tests
5. Application Scenarios
Industrial process control (such as pneumatic system pressure monitoring)
Medical equipment (requires compatibility with medium verification)
Specifications:
| Work pressure | 100 psi |
| Output type | Analog |
| Installation style | Through Hole |
| Operating power supply voltage | 10V |
