제품 상세 정보:
|
| 스펙트럼 민감성 특성 (단기): | 185나노미터 | 스펙트럼 감수성 특성 (장): | 260나노미터 |
|---|---|---|---|
| 전극 재료: | Ni | 무게: | 1.5 Ｇ |
| [최대 등급] 전원 공급 장치 전압: | 500 Ｖ | [최대 등급] 평균 방전 전류: | 1 MA |
| [최대 등급] 피크 전류: | 30 MA | 작동 온도 범위: | +125 'Ｃ에 대한 -40 |
| 강조하다: | YJJ R9454 UV flame detector,side-window UV photodiode sensor,UV light bulb flame detector |
||
Product Description:

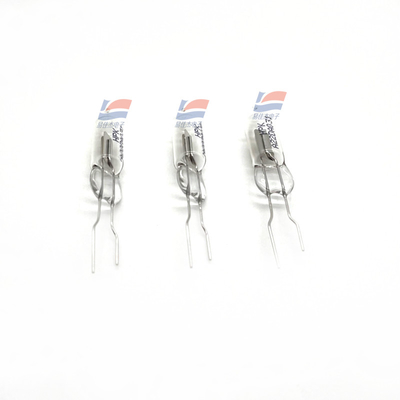

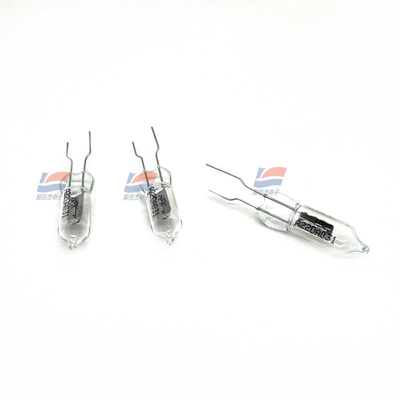

YJJ R9454 Side-Window Type UV Light From Side Flame Detector of Bulb
Features:
R9454 is a side-window type (UV light enters from the side of the bulb), and its shape is similar to that of R2868 UVtron. It features high sensitivity and a wide field of view (directionality).
Detailed parameters
Spectral sensitivity characteristics (short) 185 nm
Spectral sensitivity characteristics (long) 260 nm
Electrode material Ni
Weight 1.5 g
[Maximum Rating] Power supply voltage (DC) 500 V
[Maximum Rating] Average discharge current 1 mA
[Maximum Rating] Peak current 30 mA
[Maximum Rating] Operating temperature range -40 to +125 °C
Discharge startup voltage (DC) 360 V
Discharge holding voltage (DC) 300 V
Typical sensitivity value 4000 min-1
Maximum background value 10 min-1
[Recommended Operating Parameters] Power supply voltage (DC) 400 ± 25 V
[Recommended Operating Parameters] Average discharge current 0.3 mA
[Recommended Operating Parameters] Shortest quenching time 2 ms
Specifications:
| Spectral sensitivity characteristics (short) | 185 nm |
| Spectral sensitivity characteristics (long) | 260 nm |
| Electrode material | Ni |
| Weight | 1.5 g |
