제품 상세 정보:
|
| 측정 범위: | 0 ~ 10 부 | 감광도: | ppm 당 1.9 ± 0.8 마이크로 앰퍼 |
|---|---|---|---|
| 해결: | 백만 분당 0.1 부 | 응답 시간: | T90 |
| 온도: | -20 ℃ ~ 50 ℃ | 습기: | 15% ~ 90% RH |
| 압력: | 90 ~ 110 kPa | 서비스 수명: | 3 년 |
| 강조하다: | electrochemical gas sensor for environmental monitoring,0-10 ppm gas sensor,YJJ 4ETO-10 gas sensor |
||
Product Description:

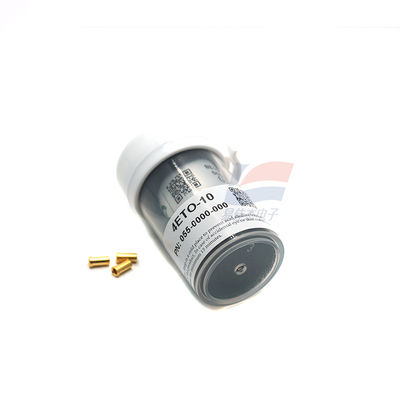

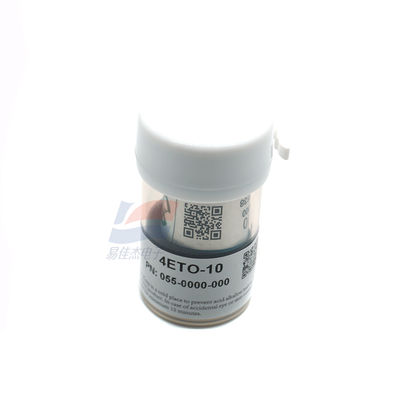

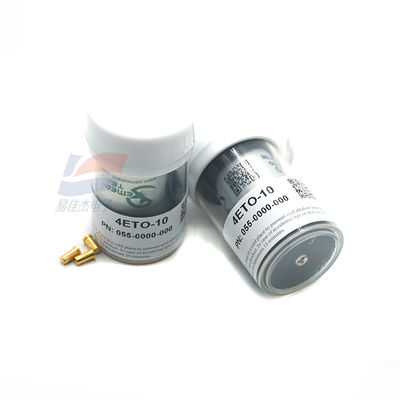

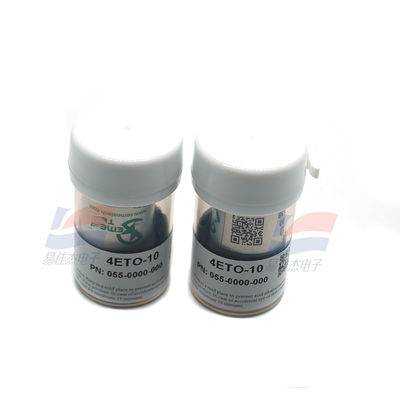

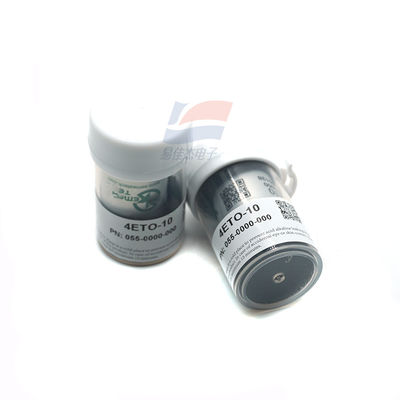

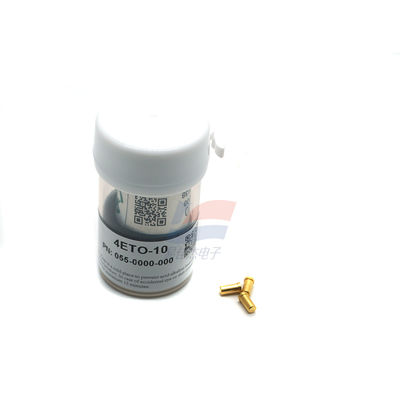

YJJ 4ETO-10 0-10 ppm Electrochemical Gas Sensor Is Used For Environmental Monitoring
Features:
Main parameters of the 4ETO-10 gas sensor are as follows:
Measurement range
0 to 10 parts per million of ethylene oxide (C2H4O).
Sensitivity
1.9 ± 0.8 μA/ppm (baseline range: -0.2 to 2.5 μA), or 0.760 ± 0.32 μA/ppm.
Resolution
0.1 parts per million.
Response time (T₉₀)
≤ 120 seconds.
Working temperature
-20℃ to 50℃.
Humidity range
15% - 90% relative humidity (no condensation).
Pressure range
90 to 110 kPa.
Long-term stability
The signal value changes by less than 2% each month.
Service life
In the air environment, it lasts for approximately 3 years.
4ETO-10 gas sensor is mainly used for detecting the concentration of ethylene oxide (C2H4O), and is applicable in industrial environments, petrochemical industries, pharmaceutical production, and other scenarios.
Specifications:
| Range | 0 - 100 ppm |
| Sensitivity | 1.9 ± 0.8 μA/ppm (at 20℃) |
| Baseline range | -0.2 to 2.5 μA (@20℃) |
| Response time | ≤ 120 seconds (T90) |
