제품 상세 정보:
|
| 발견 가능 가스: | 암모니아 | 탐지 범위: | 0 - 1000 ppm |
|---|---|---|---|
| 최대 과부하: | 2500 ppm | 출력 신호: | 8 ± 4 NA/PPM |
| 강조하다: | ammonia gas sensor electrochemical,premium line gas sensor,NT-NH3-PL1000 ammonia sensor |
||

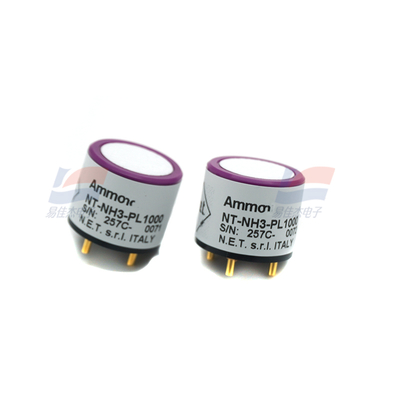

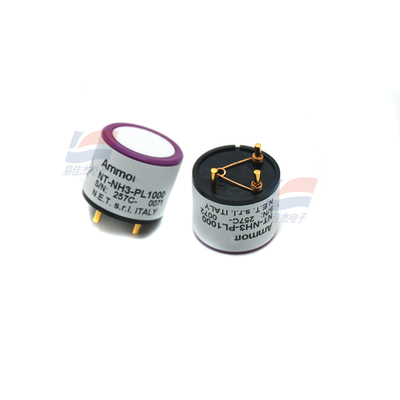

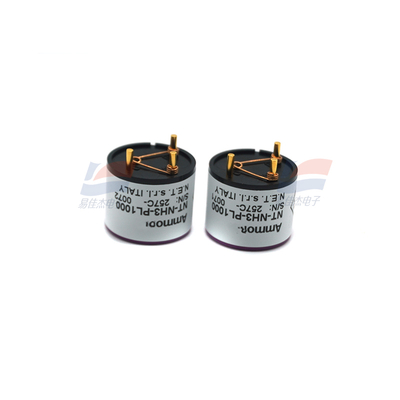

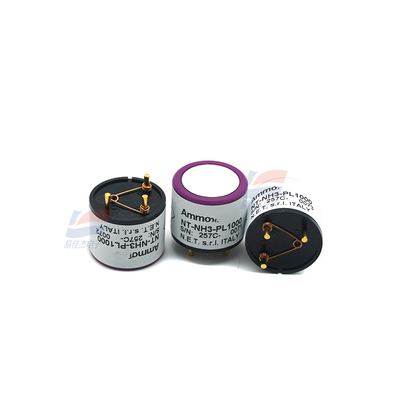

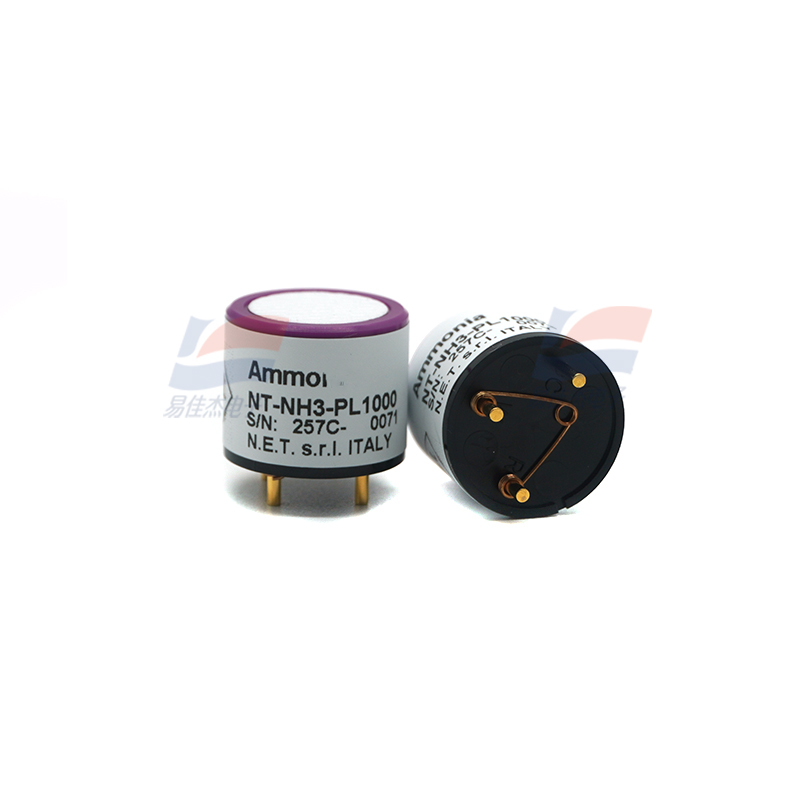

NT-NH3-PL1000 Ammonia Gas Sensor Premium Line Electrochemical
The NT-NH3-PL1000 is a 3-electrode electrochemical gas sensor for the detection of Ammonia in a variety of gas detection applications.
Exhibiting high performance with very stable base line and output signal and excellent selectivity, this compact sensor (20.4 mm Ø) is
suitable both for portable and fixed gas detection instruments.
The porous electrode technology enables accurate gas detection with high sensitivity. The mechanical design of the sensor gives optimum
gas diffusion characteristics, and the hermetically sealed enclosure prevents costly electrolyte leakage.
NET Premium Line design offers several advantages with respect to traditional industrial sensors. For example it gives the possibility to use
a general OP amplifier instead of the high-cost OP97.
Specification:
| Resolution | 10 ppm |
| Repeatability | ± 10% |
| Typical Baseline Range (pure air) | < 6 ppm |
| Typical Response Time (t90) | < 120S |
| Baseline Shift (- 30 ~ 50 degree C) | < 20 ppm |
| Long Term Output Drift | < 2%/month |
| Weight: Approximately | 4.5 g |
| Operating Temperature | -30°C to + 50°C |
| Operating Humidity | 15 to 90 % RH |
| Operating Pressure Range | 900 to 1100 mbar |
| Recommended Load Resistor | 33 Ω |
| Bias Voltage | Not required |
| Recommended Storage Temperature | 0-20℃ |
| Position Sensitivity | None |
| Storage Life | < 6 months |
| Warranty | 2 years on mechanical defects only |
| Expected Life Time | 2 years |
