제품 상세 정보:
|
| 모델 번호: | DHT20 | 공급 전압: | DC : 2.2 ~ 5.5V |
|---|---|---|---|
| 재료: | ABS+PC | 출력 신호: | I2C |
| 강조하다: | DHT20 temperature humidity sensor,digital I2C humidity sensor,fast response temperature sensor |
||

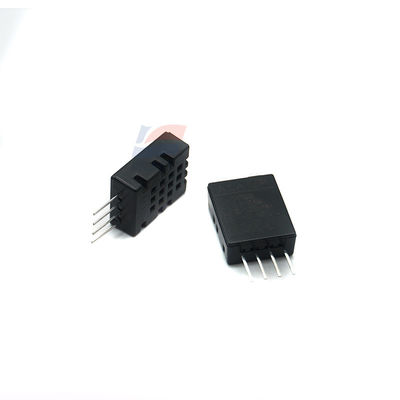

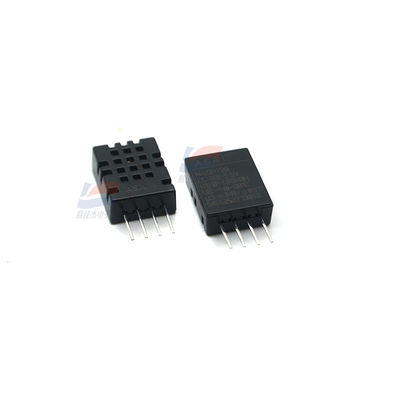

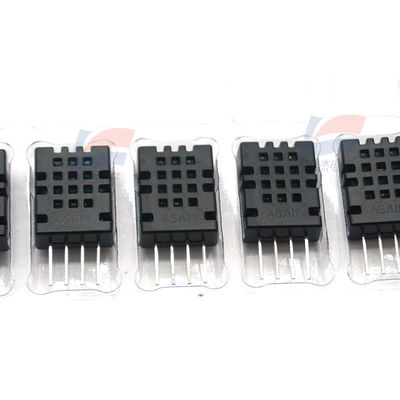

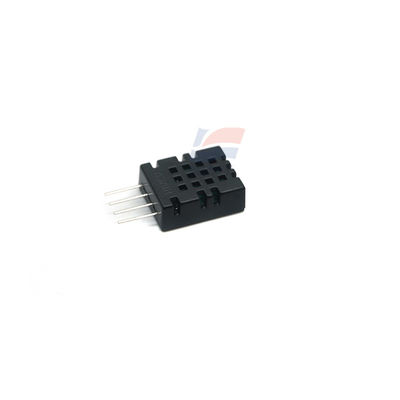

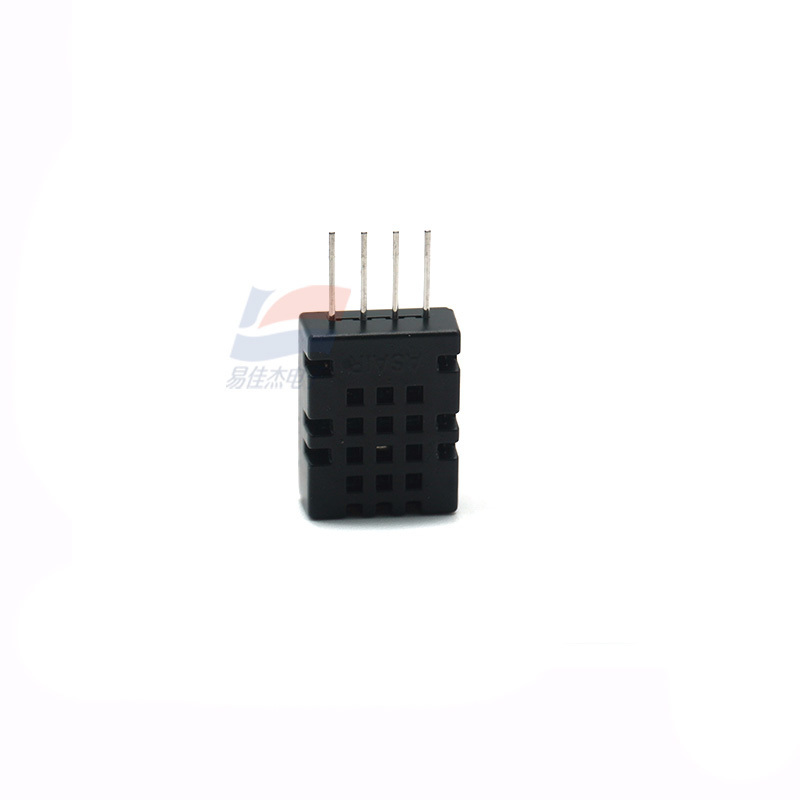

DHT20 Temperature And Humidity Sensor Digital Output I2C Interface Fast Respond
1. Product Summary
DHT20 is a new upgraded product of DHT11, Aosong equipped it with a dedicated ASIC sensor chip, a high-performance semiconductor silicon-based capacitive humidity sensor, and a standard on-chip temperature sensor, and uses a standard I2C data output signal format. Certainly, Aosong has greatly improved its performance and has exceeded the reliability level of the previous generation sensor(DHT11). Meanwhile, Aosong has been improved the new generation of upgraded products to make their performance more stable in high temperature and high humidity environments; at the same time, Aosong has greatly improved the accuracy, response time, and measurement range of the product. Aosong rigorously calibrated and tested each sensor before delivery to ensure and satisfy customers’ large-scale applications.
2. Key Applications
The DHT20 is a kind of sensor of humidity and temperature with digital I²C output. Aosong temperature and humidity sensors can use in HVAC, dehumidifiers, testing and testing equipment, consumer products, automobiles, automatic control, data loggers, weather stations, home appliances, humidity control, medical and other applications that need to detect and control temperature and humidity.
Specification:
| Measurement Range TEMP | -40~+80°C RH:0~100%RH |
| Accuracy TEMP | 士0.5°C RH:士3%RH(25°C) |
| Repeatability TEMP | ±0.1°C/Y RH:0.1%RH/Y |
| Resolution TEMP | 0.01°C RH:0.024%RH |
| Response Time TEMP | 5~30S(63%)RH:<8S(T63%) |
