제품 상세 정보:
|
| 작동 원리: | 전기화학적 원리 | 측정 범위 : | 1 - 25% 권. O2 |
|---|---|---|---|
| 최대 과부하: | 30% vol. 오 ₂ | output 신호 : | 공기 중 0.10 ± 0.02 mA |
| 응답시간(T90): | <15 초 | 제로 전류(바이어스): | < 0.6% 권. O2 |
| linearity : | 일반적으로 대부분의 경우 선형으로 간주됩니다. | Operating 온도 ating: | -20 ° C ~ +50 ° C |
| 강조하다: | electrochemical oxygen sensor 0-30% range,oxygen gas sensor ambient measurement,YJJ 4OXV oxygen sensor with warranty |
||
Product Description:

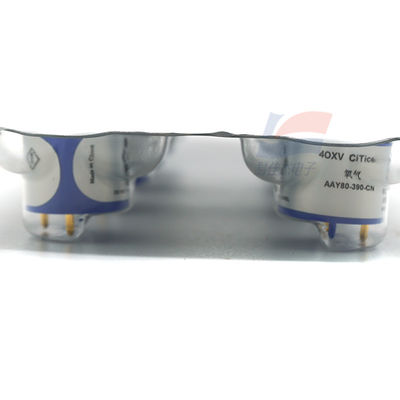

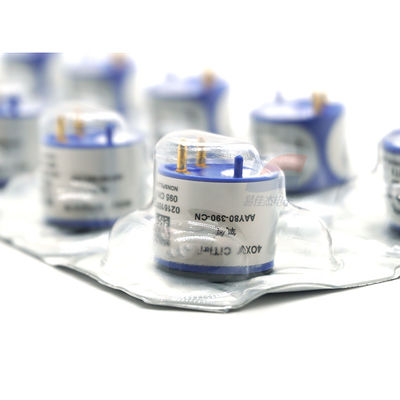

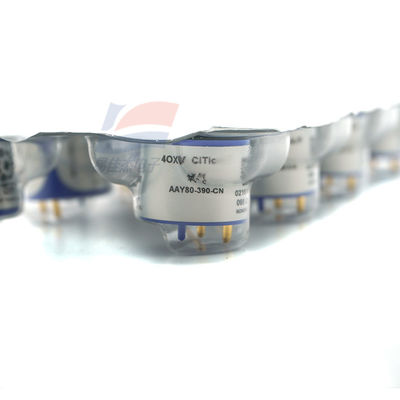

YJJ 4OXV AAY80-390-CN 4OX-V 0-30% Electrochemical Oxygen Sensor Measures Ambient Oxygen Concentration
Features:
Oxygen sensor 4OXV technical parameters
measurement
How it works: electrochemistry
Measurement range: 1-25% O2
Maximum overrun range: 30%
Signal output: 0.1 0.02mA
Response time (T90) : < 15s
Zero drift: < 0.6% O2
-ity: many cases can be regarded as -, see the specific data
Electrical parameters
Load resistance: 100 Ω
The mechanical parameters
Weight: < 16g
Shell material: ABS
Using the environment
Use temperature: - 20 to 50 ℃
Temperature: 0-20 ℃
Thermal transient: < 23.5% O2
Pressure: atmospheric pressure 20%
Pressure coefficient: < 0.02%/mBar
Pressure transient: < 200% signal change
Humidity: 5-95%RH non-condensing, short term up to 0-99% non-condensing
life
Long-term sensitivity drift: < 2%/ month
< 5%/ year typical value
Use time: 2 years
Storage time: 6 months
Specifications:
| Load resistance | 100 Ω |
| Maximum overrun range | 30% |
| Signal output | 0.1 0.02mA |
| Zero drift | < 0.6% O2 |
| Load resistance | 100 Ω |
