제품 상세 정보:
|
| 측정 범위: | 1 - 25% 권. O2 | 최대 과부하: | 30% vol. 오 ₂ |
|---|---|---|---|
| 출력 신호: | 공기 중 0.10 ± 0.02 mA | 응답 시간 (T90): | <15 초 |
| 제로 전류 (오프셋): | < 0.6% 권. O2 | 압력 계수: | < 0.02% 신호/mbar |
| 강조하다: | oxygen gas sensor with false alarm immunity,4OXV-CN oxygen sensor reliable lifespan,AAY80-390-CN oxygen gas sensor |
||

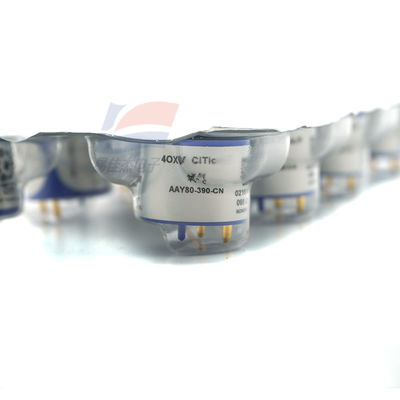

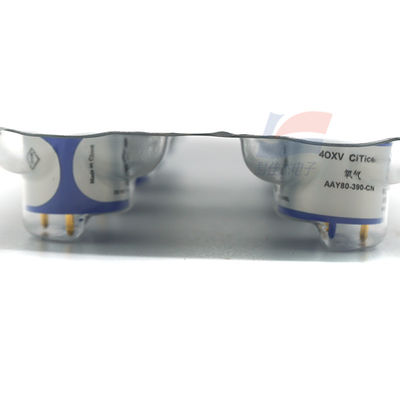

4OX-V-CN 4OXV-CN Gas Oxygen Sensor False Alarm Immunity Reliably Meets Stated Life
Features:
Applications:
| Measurement Technology | Electrochemical |
| Measurement Range | 1 - 25% vol. O₂ |
| Maximum Overload | 30% vol. O₂ |
| Output Signal | 0.10 ± 0.02 mA in air |
| Response Time (T90) | < 15 seconds |
| Zero Current (Offset) | < 0.6% vol. O₂ |
| Linearity | Can be considered linear in many cases |
| Operating Temperature Range | - 20 °C to + 50 °C (up to 3 months continuous across RH range) |
| Recommended Storage Temp | 0 °C to 20 °C |
| Thermal Transient | < 23.5% vol. O₂ (temp. plunge + 22 °C to - 20 °C) |
| Operating Pressure Range | Atmospheric ± 20% |
| Pressure Coefficient | < 0.02% signal/mbar |
| Pressure Transient | < 200% signal change (60 cm H₂O step change) |
| Relative Humidity Range (at 0 °C to 20 °C) | Continuous: 5 to 95% RH non - condensing; Short term: 0 to 99% RH non - condensing |
| Recommended Load Resistor | 100 Ω |
| Casing Material | ABS |
| Weight | < 16 g |
| Orientation Sensitivity | < 0.2% vol. O₂ equivalent |
| Long - term Output Drift | < 2% signal/month, typically < 5% over operating life |
