제품 상세 정보:
|
| 감광성 영역: | Φ2.0mm | 원소 수: | 1 |
|---|---|---|---|
| 패키지: | 금속 | 패키지 카테고리: | To-5 |
| 냉각: | 냉각되지 않은 것 | 스펙트럼 응답 범위: | 0.9 ~ 1.7 μm |
| 강조하다: | silicon PIN photodiode low capacitance,UV photodiode sensor non cooled,photodiode sensor with low terminal capacitance |
||

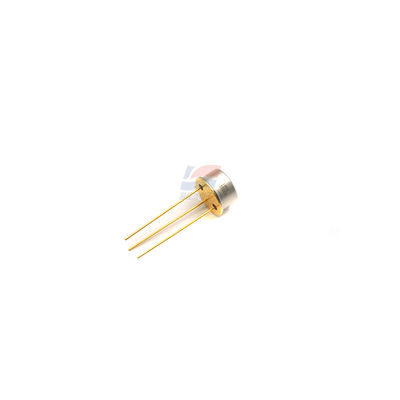

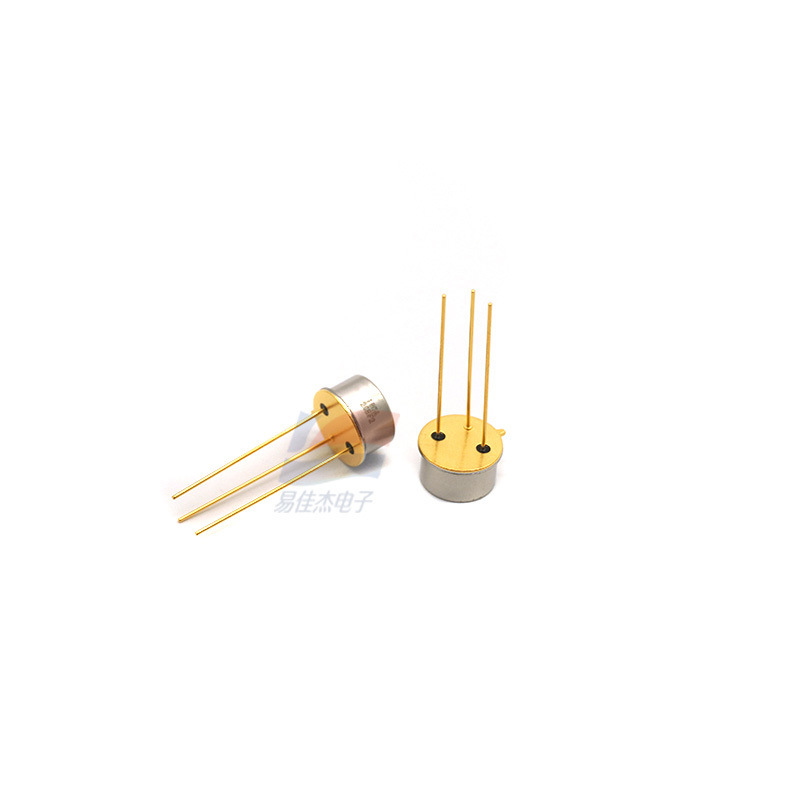

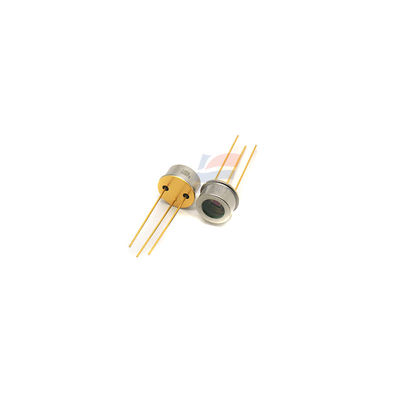

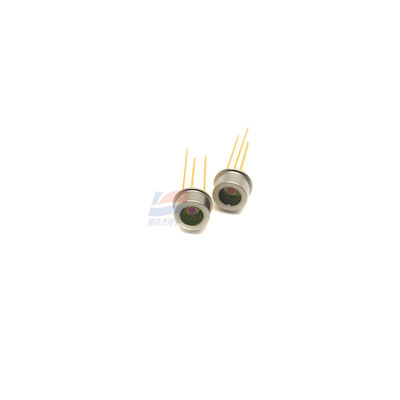

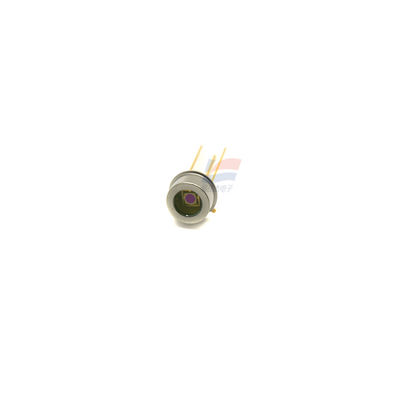

G12180-020A PIN Photodiode Silicon Low Terminal Capacitance Non Cooled
Features
- Low noise, low dark current
- Low terminal capacitance
- Photosensitive area: φ2 mm
- Low noise
Applications
*Laser monitors
*Optical power meters
*Laser diode life test
*NIR (near infrared) photometry
*Optical communications
Options
Amplifier for InGaAs PIN photodiode C4159-03
Heatsink for one-stage TE-cooled type A3179
Heatsink for two-stage TE-cooled type A3179-01
Temperature controller for TE-cooler type C1103-04
Specification:
|
Peak sensitivity wavelength (typ.)
|
1.55 μm |
| Photosensitivity (typ.) | 1.1 A/W |
| Dark current (max.) | 7.5 nA |
| Cutoff frequency (typ.) | 13 MHz |
| Terminal capacitance (typ.) | 250 pF |
