제품 상세 정보:
|
| 범위: | 0-25% 02 | 제로 전류 (오프셋): | <0.6%v/v O2 |
|---|---|---|---|
| 공기에서 출력 신호: | 70~130μA | 응답 시간 (T90): | 15초 미만 |
| 강조하다: | oxygen gas sensor through hole,portable oxygen gas detector,SGX-4OX gas sensor |
||

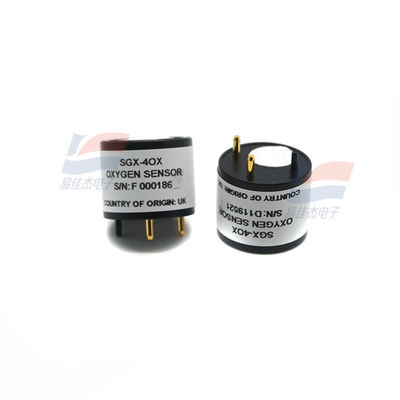

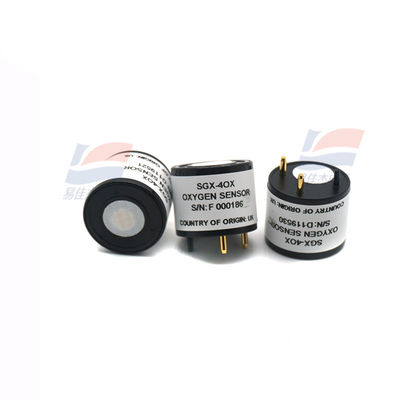

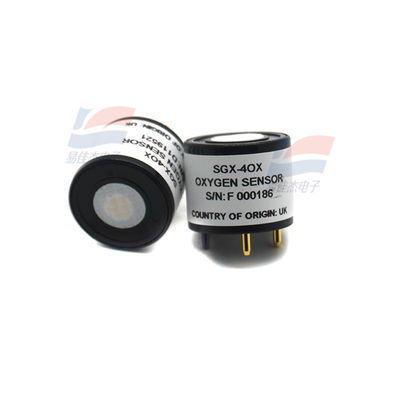

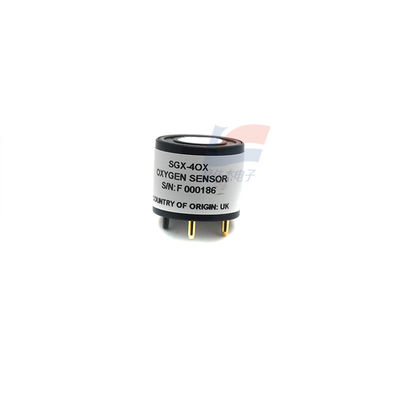

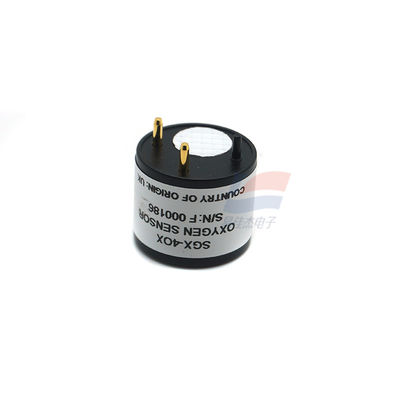

SGX-4OX Oxygen Gas Sensors Portable Gas Detectors Through Hole Mounting
POISONING
SGX sensors are designed to operate in a wide range of harsh environments and conditions. However it is important that exposure to high concentrations of solvent vapours is avoided during storage, fitting into instruments and operation.When using sensors on
printed circuit boards(PCBs),degreasing agents should be used prior to the sensor being fitted.
ACID GASES
Acid gases such as CO,and SO, will be absorbed by the electrolyte and tends to increase the flux of oxygen to the electrode. This gives an enhanced oxygen signa of approximately 0.3% of signal per 1% CO.. The SGX 40X sensors are not suitable for continuous operation
in concentrations of CO, above 25%.
Specification:
| Maximum Overload 30% | 02 |
| Long-term Output Drift | <5% per annum |
| Recommended Load Resistor | 100 ohms |
| Warranty | 2 years |
