제품 상세 정보:
|
| 측정 객체: | 공동 | 측정 범위: | 0 ~ 500ppm |
|---|---|---|---|
| 정확성: | 풀 스케일의 ± 5% | 응답 시간: | T90 ≤ 30초 |
| 작동 전압: | 16 - 32VDC | 출력 신호: | 4 - 20mA 아날로그 신호 |
| 강조하다: | explosion-proof gas detector,industrial combustible gas sensor,YJJ XCD gas detector |
||
Product Description:

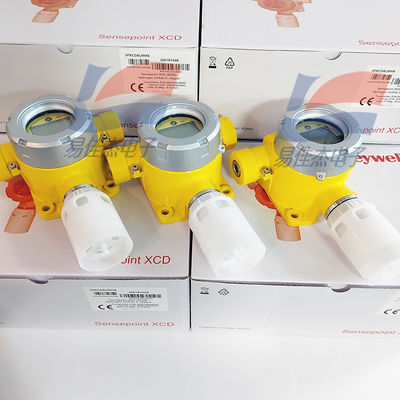

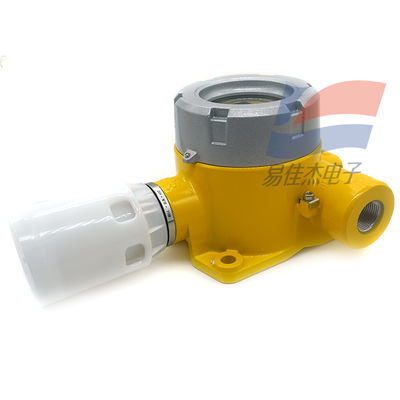

YJJ SPXCDALMCX XCD Series Explosion-Proof Gas Detector
Features:
Sensepoint XCD series can comprehensively monitor flammable, toxic and oxygen hazards in potential explosive environments both indoors and outdoors. Users can modify the detector's operation using an LCD and a magnetic switch without having to open the device. This enables single-person, non-intrusive operation and reduces daily maintenance time and costs.
The main parameters of the SPXCDALMCX gas detector are as follows:
Parameter Description
Measurement Object: CO (Carbon Monoxide)
Measurement Range: 0 - 500 ppm
Power Supply Voltage: 16 - 32 VDC (default 24 VDC)
Accuracy: ±5% of full scale (O₂, CO, H₂S, catalytic combustion sensor)
Response Time: T₉₀ ≤ 30 seconds
Communication Mode: RS485, MODBUS RTU
Certification Temperature Range: -40° to +65°C (-40° to +149°F)
Shell Material: Aluminum alloy or stainless steel (weight 1.7 - 2.2 kg)
Sensor Type: Electrochemical sensor (toxic gas)
Output Signal: 4 - 20 mA three-wire current signal (optional leak type or source type)
Other characteristics
Support remote sensor installation (up to 30 meters) Have the ability to
Three-color backlit LCD display (green/yellow/red backlighting corresponds to normal/fault/alarm states)
Complies with international safety certifications such as UL, ATEX, IECEx, etc.
SPXCDALMFX SPXCDALMRX SPXCDALMPX SPXCDALMO1
SPXCDALMHX SPXCDALMCX SPXCDALMG1 SPXCDALMNX SPXCDALMB1 SPXCDALMB2 SPXCDASMFX SPXCDASMRX SPXCDASMPX SPXCDASMO1 SPXCDASMHX SPXCDAMBX1
SPXCDALMFXM SPXCDALMRXM SPXCDALMPXM SPXCDALMO1M SPXCDALMHXM SPXCDALMCXM SPXCDALMG1M SPXCDALMNXM SPXCDALMB1M SPXCDALMB2M SPXCDASMFXM SPXCDASMRXM SPMCDXMXX SPXCDASMB1M SPXCDASMB1M
SPXCDULNFX SPXCDULNRX SPXCDULNPX SPXCDULNO1 SPXCDULNHX SPXCDULNCX SPXCDULNG1 SPXCDULNNX SPXCDULNB1 SPXCDULNB2 SPXCDUSNFX SPXCDUSNRX SPXCDUSNPX SPXCDUSNO1 SPXCDUSNNX SPXCDUSUSXX1
SPXCDULNFXM SPXCDULNRXM SPXCDULNPXM SPXCDULNO1M SPXCDULNHXM SPXCDULNCXM SPXCDULNG1M SPXCDULNNXM SPXCDULNB1M SPXCDULNB2M SPXCDUSNFXM SPXCDUSNRXM SPXCDXXXMXXXXUSXXMX
SPXCDALMTX4 SPXCDASMTX4 SPXCDULNTX4 SPXCDUSNTX4 SPXCDALMTX4M SPXCDASMTX4M SPXCDULNTX4M SPXCDUSNTX4M SPXCDALMRFD SPXCDASMRFD SPXCDULNRFD SPXCDUSNRFD SPXCDALMRFDM SPXCDASMRFDM PXCDULNRFDM SPXCDUSNRFDM SPXCDXSRFXSS SPXCDXSRRXSS SPXCDXSRPXSS SPXCDXSRB1SS
Specifications:
| Display mode | 4-digit LED digital tube displays |
| Status indication | 3 LED lights indicate power supply |
| Environmental temperature | -20℃ to 50℃ |
| Relative humidity | < 95% |
