제품 상세 정보:
|
| 작동 전압 범위: | 4.5VDC ~ 24VDC | 공급전류: | 5VDC에서 6mA(일반); 8mA(최대) |
|---|---|---|---|
| 출력 유형: | 오픈 컬렉터 NPN(싱킹) | 출력 전류 용량: | 20 MA |
| 작동 온도 범위: | -40°C ~ +150°C | 히스테리시스(BOP - BRP): | ≥ 15가우스 |
| 강조하다: | unipolar hall effect sensor,hall effect position sensor,proximity detection hall sensor |
||

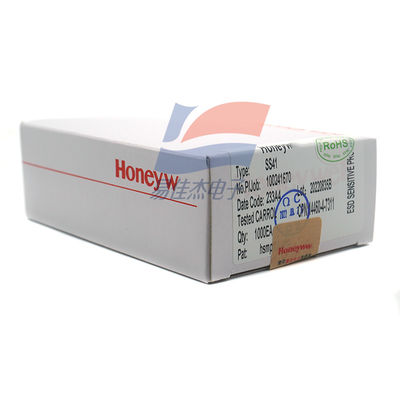

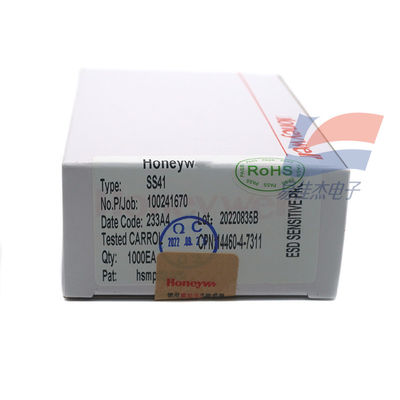

SS41 High-performance Unipolar Hall Effect Sensor Manufactured For Position Sensing Proximity Detection
Key Features:
Applications:
| Operating Voltage Range | 4.5 VDC to 24 VDC |
| Supply Current | 6 mA (typical) at 5 VDC; 8 mA (max) |
| Output Type | Open-collector NPN (sinking) |
| Output Current Capacity | 20 mA (max) continuous |
| Operating Temperature Range | -40 °C to +150 °C |
| Storage Temperature Range | -40 °C to +150 °C |
| Magnetic Operate Point (BOP) | 20 Gauss (min) to 70 Gauss (max) |
| Magnetic Release Point (BRP) | -70 Gauss (min) to -20 Gauss (max) |
| Hysteresis (BOP - BRP) | ≥ 15 Gauss |
| Response Time | 1 μs (typical) |
| Package Type | TO-92, TO-92S (standard through-hole) |
담당자: Miss. Xu
전화 번호: 86+13352990255
