제품 상세 정보:
|
| 기술: | 전기 화학 | 측정 범위: | 0.1ppm SO2 ~ 20ppm SO2 |
|---|---|---|---|
| 최대 과부하: | 150ppm SO2 | 제거할 필터: | H2S |
| 강조하다: | SO2 gas sensor small size,sulphur dioxide gas detector,compact SO2 sensor with warranty |
||

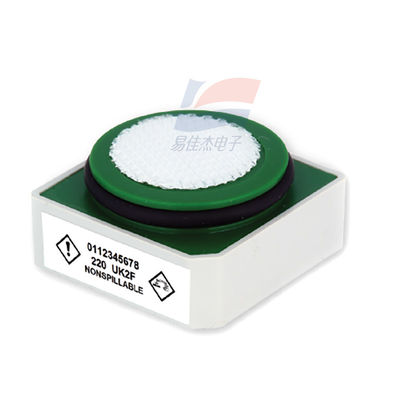

1SO2 AD300-R04A-CIT Sulphur Dioxide Gas SO2 Sensors Small Size
DESCRIPTION
The 1series analogue gas sensor is compact low profile sensor utilizing the trusted Honeywell Technology. These sensors have an extended operating life of five years along with extended temperature and humidity ranges.
Specification:
| Filter Capacity | 400 ppm hours @ 25 ppm H2S |
| Sensitivity | 160 nA/ppm ±40 nA/ppm |
| T50 Response Time | Typically < 30 seconds |
| T90 Response Time | < 10 seconds @ 20°C |
| Baseline Offset*(in clean air) | -0.2 ppm to 0.5 ppm equivalent |
| Zero Shift (20°C to 40°C) | < 0.2 ppm equivalent |
ELECTRICAL
| Recommended | Load Resistor 10 W |
| Bias Voltage | No bias |
MECHANICAL
| Weight | < 5 g |
| Outer Plastic Body Material | Modified PPO |
| O-ring Material | FKM60 ±5 shore A |
| Contact Material | Gold plated |
| Orientation Sensitivity | None |
