제품 상세 정보:
|
| 측정 범위: | 0 - 100% O2 | 출력 전압: | 25℃ 공기 중 |
|---|---|---|---|
| 정확성: | 일정한 온도에서 | 응답 시간 (T90): | 6초 미만 |
| 작동 온도: | 0-40 ℃ | 보관 온도: | -15~50℃ |
| 강조하다: | medical oxygen sensor,YJJ CLASS R-17MED oxygen sensor,0-25% oxygen monitoring sensor |
||
Product Description:

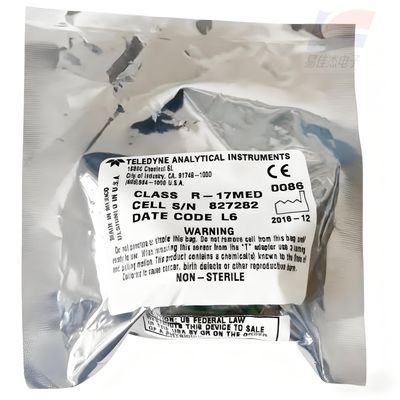

YJJ CLASS R-17MED 0-25% Or 0-100% Oxygen Sensor Is Used For Monitoring In Medical Environments
Features:
Teledyne CLASS R-17MED oxygen sensor from the United States is mainly used for monitoring in medical environments. Its key parameters are as follows:
Parameter Description
Range: 0-25% or 0-100% (in pure oxygen environment)
Accuracy: Error controlled within ±1%, with high-end equipment reaching ±0.5%
Response Time: Electrochemical sensor takes approximately 10-30 seconds
Calibration Method: Needs to be calibrated regularly using standard gas (such as air with 20.9% O2)
Main application
This sensor is specifically designed for medical scenarios. It can withstand the long-term effects of nitrous oxide and is suitable for high-demand environments such as operating rooms. It features a long lifespan and rapid response characteristics.
Specifications:
| Measuring range | 0-25% |
| Sensitivity | 55 ~ 90nA/ PPM |
| Response time | lt;25s |
| Full scale - error | 15-25ppm |
