제품 상세 정보:
|
| 센서 유형: | 전기 화학적 센서 | 측정 범위: | 0 - 25% O2 |
|---|---|---|---|
| 출력 신호: | 0.41 ± 0.05mA(공기 중) | 0 전류: | < 0.3% O2 |
| 작동 온도 범위: | - 30°C ~ + 50°C | 작동 압력 범위: | 800 - 1200mbar |
| 강조하다: | electrochemical oxygen gas sensor,flue gas oxygen sensor,harsh environment oxygen monitor |
||

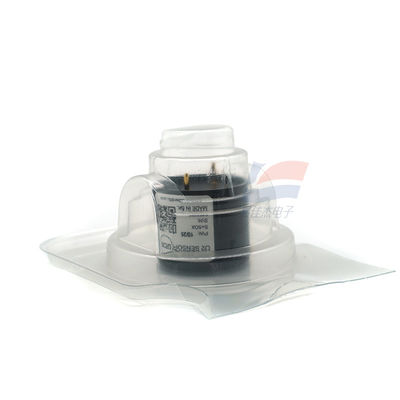

S+5OX Electrochemical Gas Oxygen Sensor For Oxygen Concentration Monitoring In Harsh Environments Such As Flue Gas
Key Features:
Typical Applications:
| Target Gas | Oxygen (O₂) |
| Sensor Type | Electrochemical sensor |
| Series | 5 - series |
| Package | 5 - series standard package |
| Interface/Pins | 2 - pin interface |
| Measuring Range | 0 - 25% O₂ (Maximum overload: 30% O₂) |
| Output Signal | 0.41 ± 0.05 mA (in air) |
| Zero Current | < 0.3% O₂ (volume concentration) |
| T90 Response Time | < 10 seconds, typically less than 5 seconds |
| Bias Voltage | 0V (no additional bias voltage required) |
| Operating Temperature Range | - 30°C to + 50°C |
| Operating Humidity Range | 0% - 99% RH (non - condensing) |
| Operating Pressure Range | 800 - 1200 mbar |
| Long - term Stability | Annual output drift < 5% |
| Operating Lifetime | > 24 months (under standard air conditions) |
| Storage Temperature Range | 0°C to 20°C |
| Warranty Period | 24 months |
