제품 상세 정보:
|
| 제품 유형: | RGB 포토다이오드 | 패키지 자료: | 플라스틱 |
|---|---|---|---|
| 패키지 유형: | 표면 마운트 유형 | 패키지 크기: | 9.0×9.6×2.1mm |
| 강조하다: | RGB color sensor photodiode,3 channel photodiode sensor,plastic material UV photodiode |
||

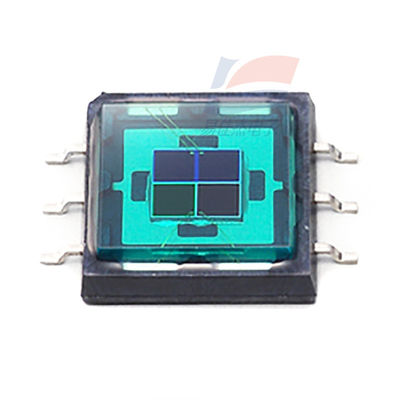

S7505-01 RGB Color Sensor Si Photodiode 3 Channel Plastic Materials
The S7505-01 uses a 3-channel (RGB) photodiode having blue, green and red sensitivities, and is molded into a surface mount type package.
Features
-3 ch (RGB) Si photodiode
-Surface mount type plastic package (9 × 9.6 mm)
-High sensitivity
Applications
*White balance adjustment
*Color identification
*Projector and Ty brightness level detection
*Color control
*Light source color temperature detection
Specification:
|
Photosensitive area
|
3.2 × 3.2 mm |
| Spectral response range (Blue) | 400 to 540 nm |
| Spectral response range (Green) | 480 to 600 nm |
| Spectral response range (Red) | 590 to 720 nm |
| Peak sensitivity wavelength (Blue) | 460 nm |
| Peak sensitivity wavelength (Green) | 540 nm |
| Peak sensitivity wavelength (Red) | 620 nm |
| Photosensitivity (Blue) | 0.18 A/W |
| Photosensitivity (Green) | 0.23 A/W |
| Photosensitivity (Red) | 0.16 A/W |
| Dark current (max.) | 0.2 nA |
| Rise time | 0.5 μs |
| Operating temperature | -10 to +60 deg.C |
| Storage temperature | -20 to +70 deg.C |
Structure /Absolute maximum ratings
| Photosensitive area size/mm | Green, Red: 1.5*1.5 Blue: 1.5*1.5(2 elements) |
| Effective photosensitive area/mm2 | Green, Red:2.25 Blue: 4.5 |
| Reverse voltage VR max | 10V |
| Operating temperature Topr | -10 to +60℃ |
| Storage temperature Tstg | -20 to +70℃ |
