제품 상세 정보:
|
| 탐지 가스: | H2 | 측정 범위: | 0~2000ppm |
|---|---|---|---|
| 최대 탐지 농도: | 5000ppm | 감광도: | (0.5~1.5)nA/ppm |
| 강조하다: | electrochemical hydrogen fuel cell sensor,low consumption gas sensor,hydrogen fuel cell type sensor |
||

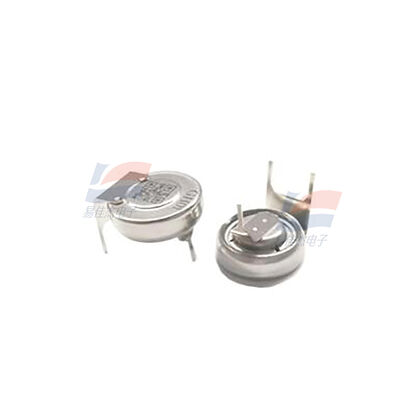

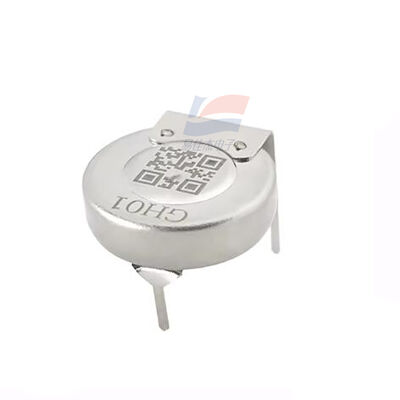

MEv-GH01 Electrochemical Hydrogen Fuel Cell Type Sensor Low Consumption
Description
MEv-GH01, fuel cell type sensor, detects gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be detected by measuring value of current.
Application
It is widely used in H2 concentration detection in commercial, vehicle, small generator field and other fields.
Features
Low consumption, high precision, high sensitivity, wide linear range, good anti-interference ability, excellent repeatability and stability.
Specification:
|
Resolution
|
1ppm |
| Response time(T90) | ＜30S |
| Load resistance(recommended) | (500/1K/2K)Ω |
| Repeatability | ＜5﹪output value |
| Output linearity | Linear |
| Temperature range | -10℃～50℃(common) -40℃～70℃(occasionally) |
| Humidity range | 15﹪～90﹪RH |
| Pressure range Normal atmosphere | ±10﹪ |
| Anticipated using life | 10 years |
