제품 상세 정보:
|
| 가스 샘플링 방법: | 확산 | 운영 원리: | 천저 |
|---|---|---|---|
| 보정 가스: | CH4 | 상대습도: | 최대 98% |
| 강조하다: | Methane NDIR gas sensor high performance,CH4 gas sensor with warranty,NDIR methane sensor for gas detection |
||

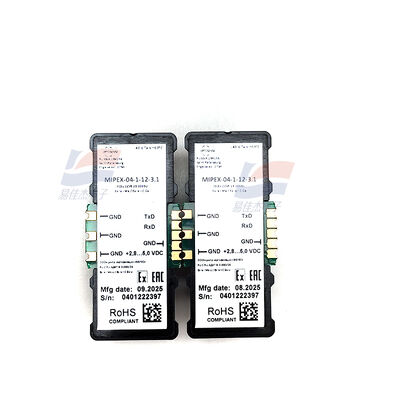

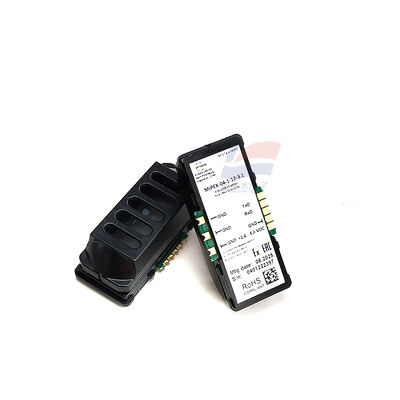

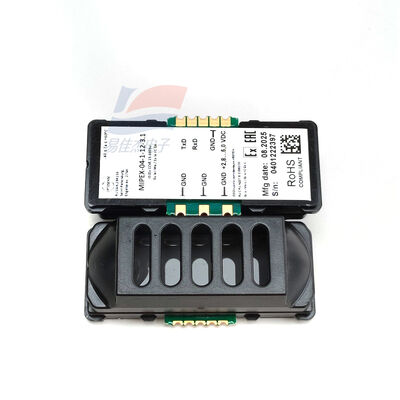

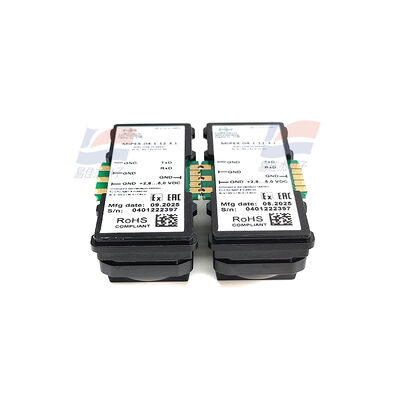

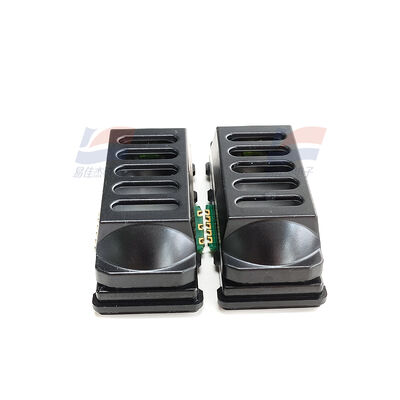

MIPEX-04-1-12-3.1 Methane NDIR CH4 Gas Sensor High Performance
MIPEX-04 CH₄ is an ultra-low power NDIR sensor for continuous methane detection in portable and wireless safety systems, including gas clip devices and battery-powered analyzers.
Its energy-efficient design enables autonomous operation without recharging or maintenance for up to 24 months.
The combination of low power consumption, certified explosion protection, and robust dual-wavelength optics makes MIPEX-04 a reliable choice for industrial gas detection in explosive atmospheres.
ADVANTAGES:
* Ultra-low power consumption – less than 35 µA average (~0.1 mW)
* Optimized for IoT and portable detectors, including compact gas clips
* Life time – over 10 years of operation
* Enables gas analyzers to run on a single battery for over 2 years without recharging or maintenance.
Specification:
|
Atmospheric pressure, kPa
|
80…120 |
| Temperature, °C | -40...+60 |
| Warm-up time, sec | ≤ 120 |
| Housing material | Polycarbonate |
| Overall dimensions, mm | 52×24×18 |
| Weight, g | 11.0…13.5 |
