제품 상세 정보:
|
| 패키지: | TO-39 / TO-5 | 방사요소: | 니크레 |
|---|---|---|---|
| 방사율: | > 0.9 | 방사선 온도: | 600°C @ 650mW |
| 강조하다: | NDIR gas sensor with thermal infrared,spectroscopic analysis gas detector,HIS550R-0WC infrared gas sensor |
||

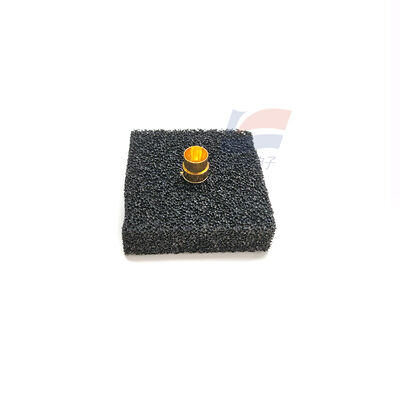

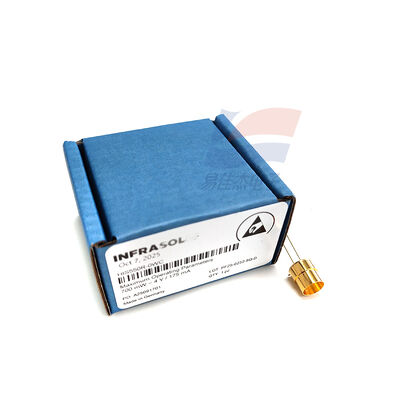

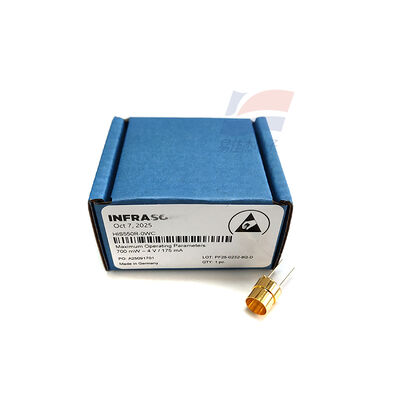

HIS550R-0WC Thermal Infrared Source NDIR Gas Detection and Spectroscopic Analysis
Typical Applications
* NDIR (Non-Dispersive Infrared) Gas Analysis: Detection of CO, CO₂, CH₄, HC, SO₂, NOₓ, etc.
* Flue Gas / Emission Monitoring, Industrial Process Gas Analysis, Environmental Monitoring
* Breath Gas Analysis, Medical Instrumentation
* Spectroscopic Analysis, Infrared Sensing Systems
Key Features
* Ultra-wide Spectrum: 2–20 µm, covering the absorption peaks of the vast majority of gases.
* High Optical Power: 215 mW—approximately 10 times higher than traditional MEMS infrared sources—resulting in a superior signal-to-noise ratio.
* Efficient Light Focusing: Features a Winston cone design for concentrated beam output and high optical path utilization efficiency.
* Electrical Modulation: Supports direct electrical modulation (6 Hz), eliminating the need for mechanical choppers to enhance system stability and reduce maintenance requirements.
* High Stability: Incorporates a nano-NiCr structure that offers excellent vibration resistance, a long operational lifespan, and minimal drift.
* Plug-and-Play: Utilizes a standard TO-39 package, ensuring compatibility with mainstream NDIR light source sockets.
Specification:
| Optical Output Power | Up to 215 mW |
| Spectral Range | 2–20 µm (Mid-infrared; no window/filter) |
| Max. Power Consumption | 700 mW (DC) |
| Max. Voltage | 4.0 V |
| Max. Current | 175 mA |
| Cold Resistance | 21–23 Ω |
