제품 상세 정보:
|
| 범위: | 0-1.6 MPa | 정확성: | ± 0.1% fs |
|---|---|---|---|
| 과부하 압력: | 2 번 더 레인지 | 출력 신호: | 0.5-4.5V |
| 전원공급장치: | 5VDC | 매체 호환성: | 316L 스테인레스 스틸 |
| 작동 온도: | -40°C ~ +125°C | 응답 시간: | < 1ms |
| 강조하다: | high-precision pressure transmitter,industrial pressure monitoring sensor,electronic pressure sensor with warranty |
||
Product Description:

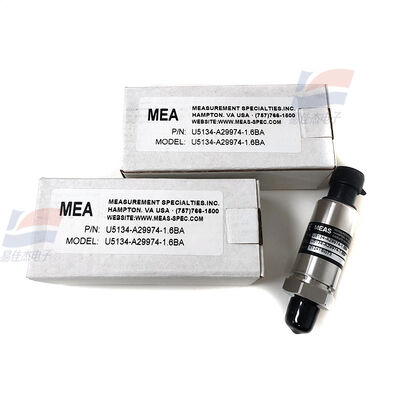

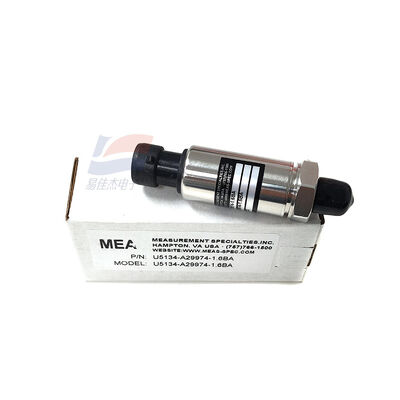

YJJ U5134-A29974-1.6BA High-Precision Pressure Transmitter Is Used for Industrial Pressure Monitoring
Features:
Model Analysis
U5134: UltraStable Series High-Precision Piezoresistive Pressure Sensor
A29974: Internal Material Code
1.6BA: Range 0~1.6MPa (16bar), Gauge Pressure Type, Stainless Steel Isolation Diaphragm
Principle: Silicon Piezoresistive, Oil-filled Isolation 316L Stainless Steel Diaphragm, Capable of Measuring Gas/Liquid
Positioning: Industrial-grade High-Precision, High-Stability OEM Pressure Core / Transmitter
II. Core Technical Parameters
Range: 0~1.6MPa (0-16bar) Gauge Pressure
Accuracy: ±0.1% FS (Full Scale), Comprehensive Error of Non-Linearity, Hysteresis, and Repeatability is Extremely Low
Overload Pressure: 2 Times Range (3.2MPa); Burst Pressure: 3 Times Range
Output Signal: 0.5-4.5V Proportional Amplification Output (Customizable 4-20mA)
Power Supply: 5VDC (Standard)
Medium Compatibility: 316L Stainless Steel Diaphragm, Compatible with Water, Hydraulic Oil, Compressed Air, Weakly Corrosive Fluids
Operating Temperature: -40℃ ~ +125℃; Compensation Temperature -20℃ ~ +85℃
Response Time: <1ms, Rapid Capture of Dynamic Pressure
Long-Term Stability: ≤±0.1% FS / Year, Anti-Drift
Structure: Small Package, Threaded Installation, Anti-Vibration, Anti-Shock
III. Main Applications (Suitable for Your Gas Sensor / Industrial Instrument Business)
Industrial Hydraulic / Pneumatic Systems: Hydraulic Station, Air Compressor, Cylinder Pressure Monitoring and Closed-loop Control
Gas Analyzer Accessories: Gas Sensor Gas Path Pressure Monitoring, Sampling Pump Pressure Control, Flow Sensor Pressure Compensation (Compatible with Shengmi, SENKO, Xiangxiang, Osun, etc. Complete Instruments)
Fluid Equipment: Water Supply Pipeline, Water Treatment, Refrigeration Equipment, Gas Pipeline Pressure Detection
Medical / Laboratory Instruments: Respirator Pressure Monitoring, Precision Fluid Control Equipment
Automation Equipment: Injection Molding Machine, Testing Machine, Construction Machinery Pressure Collection
Safety Monitoring: Pressure Over-limit Alarm, Leakage Monitoring, Pressure Closed-loop Regulation
Specifications:
| Overload Pressure | 3.2MPa |
| Burst Pressure | 3 Times Range |
| Output Signal: | 0.5-4.5V Proportional |
| Power Supply | 5VDC |
| Medium Compatibility | 316L Stainless Steel |
| Operating Temperature | -40℃ ~ +125℃ |
