제품 상세 정보:
|
| 빈도: | 24~24.25GHz | 안테나: | 1T1R |
|---|---|---|---|
| 범위 해상도: | 0.75m | 감지 각도: | ±60' |
| 강조하다: | LD2410C radar sensor module,induction distance detection sensor,gas sensor with radar detection |
||

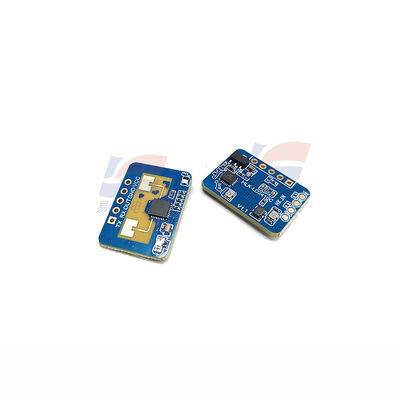

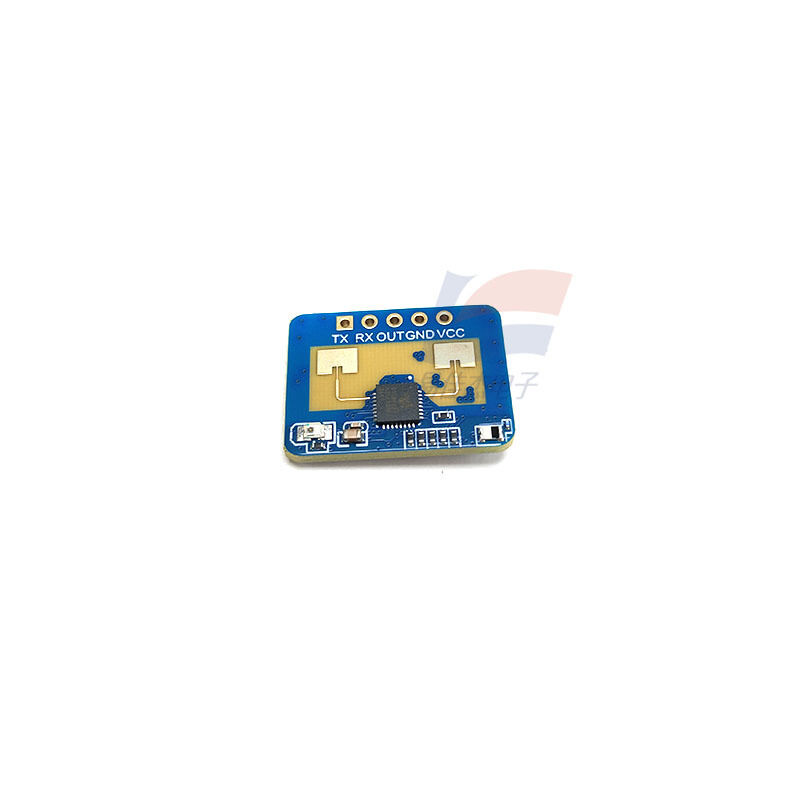

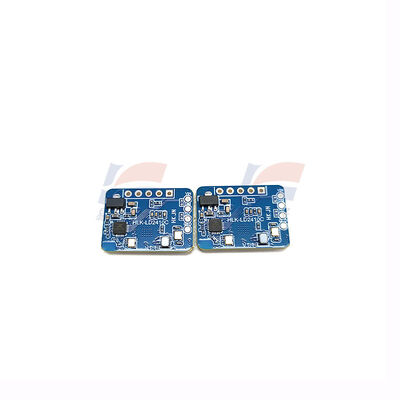

LD2410C Induction Distance Detection Radar Sensor Module
The 24GHz FMCW millimeter-wave human presence radar module offers the key advantage of simultaneously detecting stationary, slightly moving, and actively moving human subjects. Featuring low power consumption, a compact form factor, and user-friendly interfaces, it is widely used in smart home and security applications.
Typical Applications
* Smart Home: Smart lights, switches, curtains, and air conditioners (human presence wake-up / energy saving)
Security: Intrusion detection; elevator and hallway sensing
* Office: Meeting room / restroom occupancy detection; automatic lighting
* IoT: ESP32/Arduino projects (direct UART connection)
Specification:
| Power supply | 5 V (recommended), supports 5–12 V |
| Current | Approx. 79 mA |
| Dimensions | 16 × 22 mm, thickness approx. 3 mm |
| Temperature | −40°C to +85°C |
