제품 상세 정보:
|
| 측정 원리: | 전기 화학 | 측정 범위: | 0–100 ppm |
|---|---|---|---|
| 감광도: | 300~480nA/ppm @20ppm SO2 | 응답 시간: | T90 < 40초 |
| 강조하다: | SO2-BF sulphur dioxide gas sensor,electrochemistry gas sensor high precision,sulphur dioxide monitoring sensor |
||

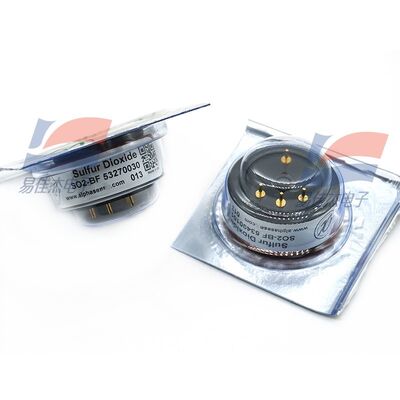

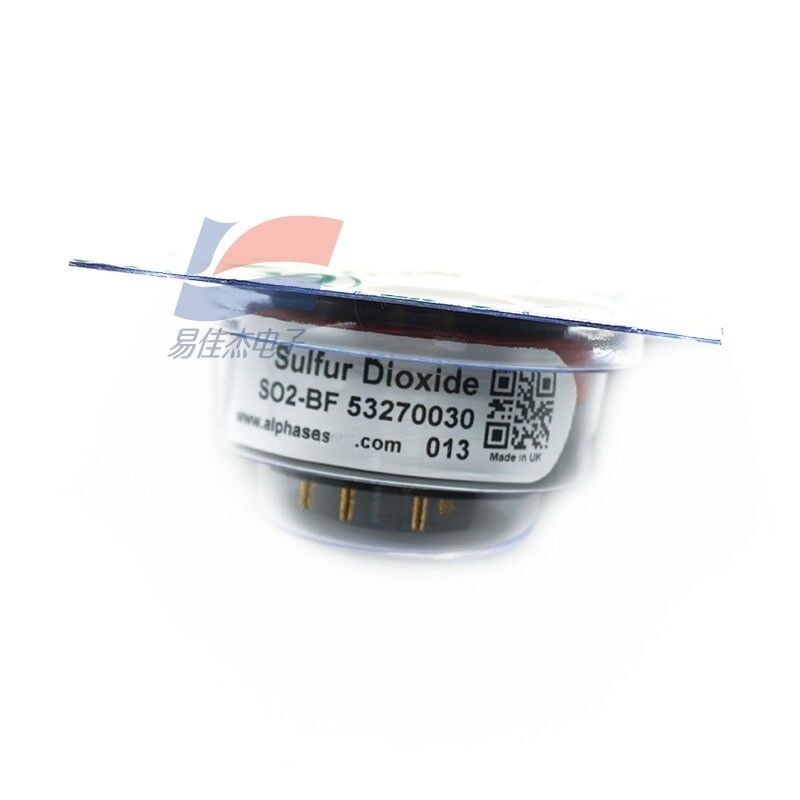

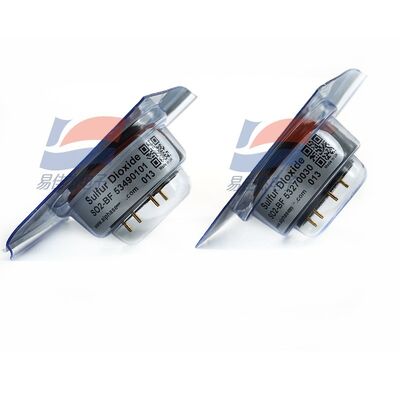

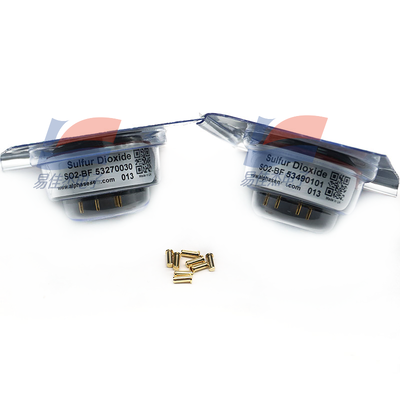

SO2-BF Sulphur Dioxide Gas Sensor Electrochemistry High Precision Monitoring
The SO2-BF electrochemical sulfur dioxide (SO₂) gas sensor, belonging to the B series (32mm diameter), is used for high-precision monitoring of SO₂ in stationary pollution sources and ambient air.
Typical Applications:
* Flue Gas Emission Monitoring (CEMS): SO₂ detection in flues of power plants, steel mills, petrochemical plants, etc.
* Ambient Air Quality Monitoring: Urban stations, industrial zone boundary stations.
* Semiconductor Cleanrooms: ppb-level SO₂ pollution control.
* Petrochemical and Chemical Industries: Process leak and safety monitoring.
Specification:
| Resolution | <0.1 ppm; Zero drift <0.1 ppm/year |
| Linearity | ±2 ppm (full scale) |
| Operating conditions | Temperature -30～50℃; Humidity 15%–90% RH; Pressure 80–120 kPa |
| Lifespan | >24 months (2-year warranty) |
