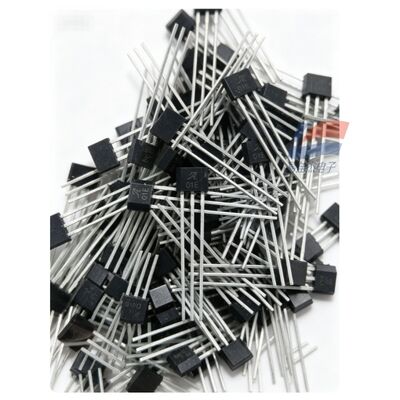

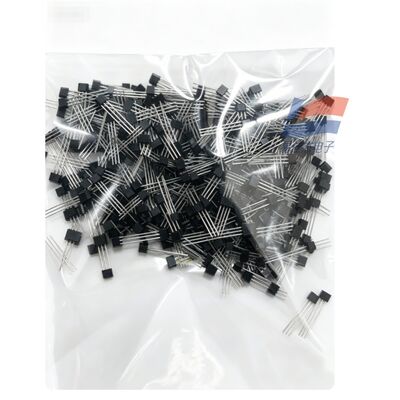

YJJ A1101EUA-T Single-Pole Digital Hall Switch With Silk-Screened 01E Automotive Electronics

Product Description:

YJJ A1101EUA-T Single-Pole Digital Hall Switch With Silk-Screened 01E Automotive Electronics

Features:

I. Basic Information

Full model name: A1101EUA-T, silk screen 01E
Package: 3-pin through-hole SIP-3 (TO92 equivalent long-pin plug)
Device type: Continuous single-pole Hall switch (digital output), only senses the S pole (south pole) of the magnet
Internal integration: Voltage stabilizing circuit, Hall element, signal amplifier, Schmitt trigger, NMOS open-drain output transistor
Certifications: AEC-Q100 automotive grade, RoHS environmental protection, high ESD/EMC anti-interference, reverse battery protection
II. Core Electrical Parameters (25℃ standard operating condition)
1. Power Supply Electrical Characteristics Table
Parameters Specification Values
Operating supply voltage VCC 3.8 V ~ 24 V DC (compatible with 5V/12V/24V industrial control / automotive power supply)
Maximum withstand voltage ±30V (built-in reverse connection protection and surge protection)
Typical static operating current 7.5 mA
Power-on startup time ≤ 4 μs, magnetic field can be detected immediately upon power-on
2. Magnetic field triggering parameters (core magnetic performance) Table
Parameters Typical Value Explanation
Work Trigger Point BOP (S pole close) 175Gs (17.5 mT) Output is pulled low and conducts when the magnetic field is ≥ 175Gs
Release Point BRP (magnet far away) 45Gs (4.5 mT) Output is cut off and has high resistance when the magnetic field is < 45Gs
Magnetic Hysteresis Window BHYS 130Gs Prevents magnetic field jitter from triggering incorrectly
Detection Polarity Single pole, only responds to the S pole of the magnet N pole has no response
3. Output Parameters
Output Structure: N-channel open-drain (open collector), must use an upper pull-up resistor
Maximum Sinking Current IOUT: 25 mA, can directly drive LEDs, small relays
Saturation Drop (conduction at 20mA): Typical 215 mV, maximum 400 mV
Off-state Leakage Current: ≤ 10 μA
4. Environment and Temperature
Operating Temperature: -40 ℃ ~ +85 ℃ (vehicle-grade wide temperature range)
Storage Temperature: -55 ℃ ~ +150 ℃
Package Material: Black epoxy resin plastic packaging, resistant to vibration and moisture
III. Core Product Advantages
Wide voltage 3.8~24V, suitable for consumer 5V devices, industrial 24V, automotive 12V systems;
Factory packaging calibration eliminates injection stress temperature drift, stable trigger points across the temperature range;
Continuous real-time detection, no sleep delay, responds instantly to magnet movement;
Built-in multiple protections: reverse connection protection, overvoltage, ESD, strong EMC against motor interference;
No external bypass capacitor, circuit is extremely simple;
DIP long-pin SIP packaging, convenient for manual soldering, plug-in production;
Solid-state without mechanical contacts, over a billion times lifespan, no wear, no sparking.
IV. Specific Application Purposes
1. Automotive Electronics (main automotive-grade scenarios)
Seat position detection, door / tailgate / window lock closure detection;
Transmission shift gear sensor, accelerator / throttle position limit;
Wiper, sunroof travel limit, new energy charging gun in-place detection.
2. Industrial Automation Equipment
Cylinder / electromagnetic valve piston in-place magnetic limit switch;
Sawing belt, roller rotational speed counter, metal workpiece presence detection;
Cabinet door, safety protection door magnetic closure alarm;
Fan, motor rotor rotational speed collection, pulse counting.
3. Household Appliances and Smart Home
Washing machine door cover magnetic detection, refrigerator door switch detection;
Vacuum cleaner collision magnetic induction, water tank / dust box in-place detection;
Water purifier filter in-place, rice cooker lid closure detection;
Smart door lock magnetic suction in-place sensing.
4. Consumer Electronics, Instrumentation Equipment
Power bank flip cover, Bluetooth headset compartment opening wake-up detection;
Printer, scanner lid closing, consumable box in-place identification;
Flowmeter, water meter / gas meter magnetic pulse counting;
Handheld instrument battery compartment magnetic suction identification.
5. Security and Storage
Door magnetic alarm, storage cabinet, safe door status monitoring;
Assembly line material presence magnetic induction, sorting counting.
