제품 상세 정보:
|
| 탐지 가스: | PH3 | 측정 범위: | 0-1000 ppm |
|---|---|---|---|
| 해결: | 0.1ppm | 응답 시간 t90: | ≤ 30 s |
| 아날로그 출력: | 0.6~3V | 디지털 출력: | UART TTL 3V |
| 공급 전압: | DC 5.0V ± 0.1V | 작동 전류: | < 10mA=""> |
| 강조하다: | phosphine gas sensor module,grain fumigation gas sensor,ZE03-PH3 phosphine sensor |
||

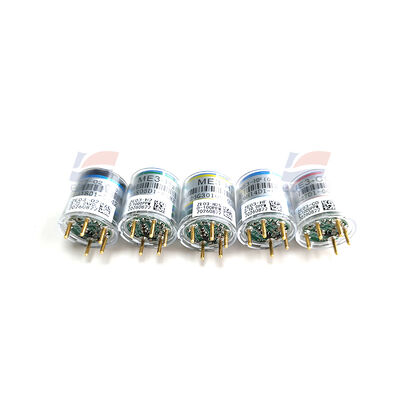

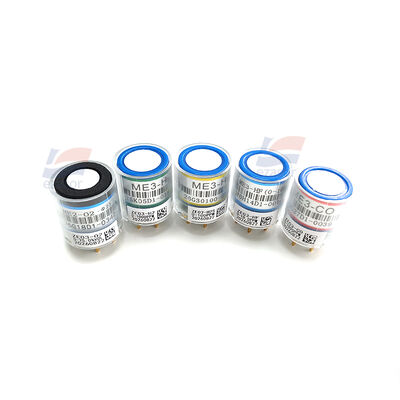

Product Description: YJJ ZE03-PH3 Phosphine Gas Sensor Module for Grain Fumigation Monitoring Features: Parameter Table | Model | ZE03-PH3 | | Detection Gas | Phosphine PH₃ | | Measurement Range | 0 - 1000 ppm | | Resolution | 0.1 ppm | | Response Time T90 | ≤ 30 s | | Analog Output | 0.6 - 3 V | | Digital Output | UART TTL 3V level; Baud Rate 9600, 8N1 | | Supply Voltage | DC 5.0V ± 0.1V | | Working Current | < 10mA | | Working Temperature | -20℃ ～ +50℃ | | Working Humidity
