제품 상세 정보:
|
| 대상가스: | CO2 | 측정 범위: | 0~5%볼륨(0~50000ppm) |
|---|---|---|---|
| 해결: | 10 ppm | 정확성: | ±(70ppm + 판독값의 5%) |
| 샘플 속도: | 2Hz | 응답 시간 t90: | 4초~2분 |
| 워밍업 시간: | <10초 | 피크 전류: | 33mA |
| 강조하다: | NDIR CO2 sensor module for grain monitoring,CO2 sensor module for battery rooms,YJJ ExplorIR-WE-5 CO2 sensor module |
||

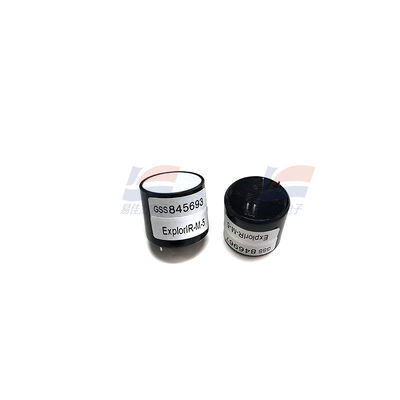

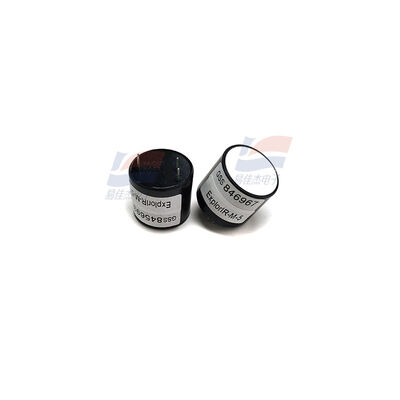

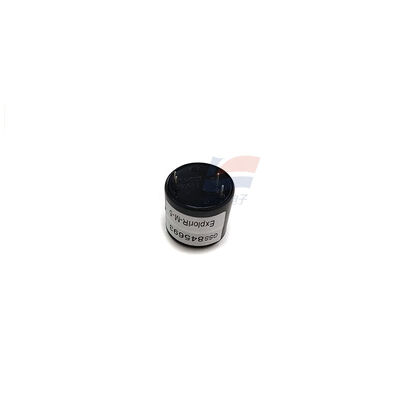

Product Description: YJJ ExplorIR-WE-5 NDIR CO2 Sensor Module 0-5%Vol for Grain & Battery Room Monitoring Features: | Model | ExplorIR‑WE‑5 | | Target Gas | Carbon Dioxide (CO₂) | | Measurement Range | 0～5%Vol (0~50000ppm) | | Resolution | 10 ppm | | Accuracy | ±(70 ppm + 5% of reading) | | Sampling Method | Diffusion type, optional tube sampling | | Sample Rate | 2Hz (500ms per reading) | | Response Time T90 | 4s～2min (user configurable) | | Warm-up Time | ＜10s | | Output |
