제품 상세 정보:
|
| 대상가스: | CO2 | 측정 범위: | 0~100%Vol(0~1000000ppm) |
|---|---|---|---|
| 해결: | 100ppm | 정확성: | ±(300ppm + 판독값의 5%) |
| 샘플 속도: | 2Hz | 응답 시간 t90: | 4초~2분 |
| 워밍업 시간: | <10초 | 피크 전류: | 33mA |
| 강조하다: | NDIR CO2 sensor module,ultra low power CO2 sensor,bioreactor gas monitoring sensor |
||

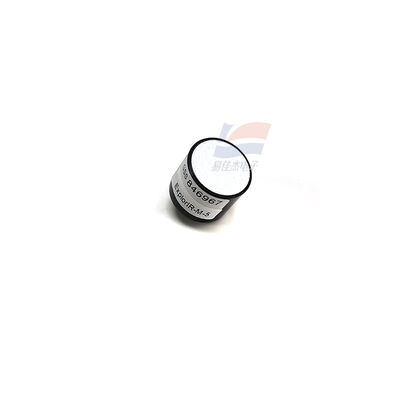

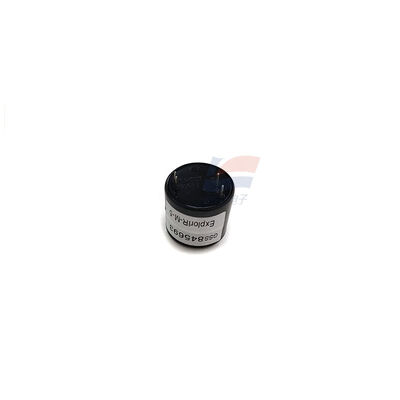

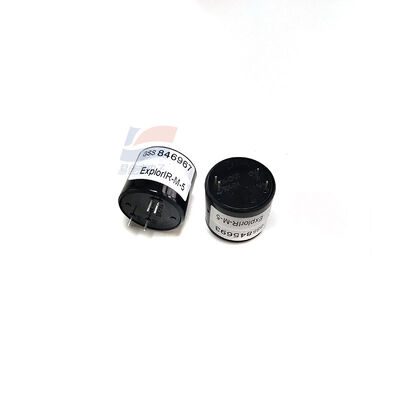

Product Description: YJJ ExplorIR-WX-100 NDIR CO2 Sensor Module 0-100%Vol Ultra Low Power for Bioreactor Gas Monitoring Features: Item Specifications Model ExplorIR-WX-100 Target Gas Carbon Dioxide (CO₂) Measurement Range 0～100%Vol (0~1000000 ppm) Resolution 100 ppm Accuracy ±(300 ppm + 5% of reading) Sampling Method Diffusion type, optional tube sampling Sample Rate 2Hz (500ms per reading) Response Time T90 4s～2min (user configurable) Warm-up Time ＜10s Output UART (9600,8N1)
