제품 상세 정보:
|
| 대상가스: | CO2 | 측정 범위: | 0.04~2%Vol(400~20000ppm) |
|---|---|---|---|
| 정확성: | ±200ppm 판독값의 ±3% | 샘플링 방법: | 확산형 |
| 응답 시간 t90: | 120초 이하 | 전원공급장치: | DC 4.5V~5.25V |
| 평균 전류: | ≤30mA | 작동 온도.: | 0°C+50°C |
| 강조하다: | NDIR CO2 sensor module for ventilation control,CO2 leak alarm sensor with 0.04~2%Vol range,gas sensor module for CO2 monitoring |
||

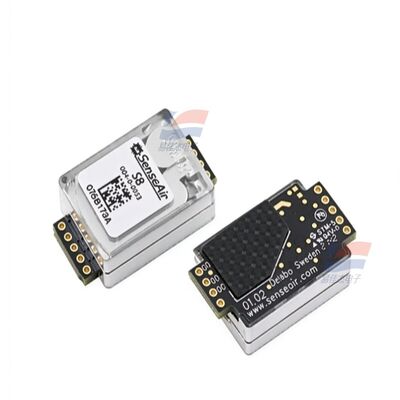

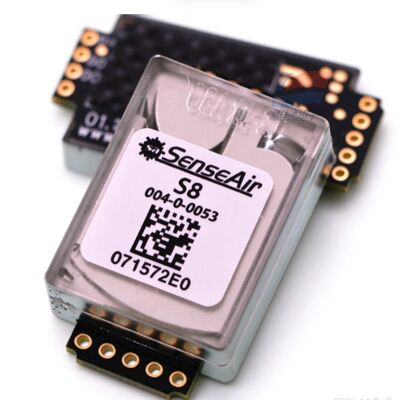

Product Description: YJJ S8-004-0-0050 NDIR CO2 Sensor Module | 0.04~2%Vol for CO₂ Leak Alarm & Ventilation Control Features: Item Specifications Model S8-004-0-0050 (S8 2%) Target Gas Carbon Dioxide (CO₂) Measurement Range 0.04～2%Vol (400~20000 ppm) Accuracy ±200 ppm ±3% of reading Sampling Method Diffusion type Response Time T90 ≤120 s Output UART Modbus, PWM, Open collector alarm output Power Supply DC 4.5V～5.25V Average Current ≤30mA; Peak current 300mA Operating Temp. 0℃
