제품 상세 정보:
|
| Measurement Range: | 0–500 SLPM | Accuracy: | ±1.5% of Full Scale (F.S.) |
|---|---|---|---|
| Repeatability: | ±0.75% | Response Time: | <100 ms |
| Operating Pressure: | 1.0 MPa (145 psi) | Temperature Range: | -10°C to +55°C |
| 강조하다: | oxygen therapy flow sensor,anesthesia machine flow sensor,medical air flow sensor MF4719 |
||

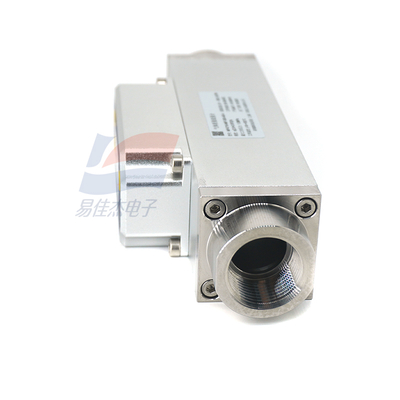

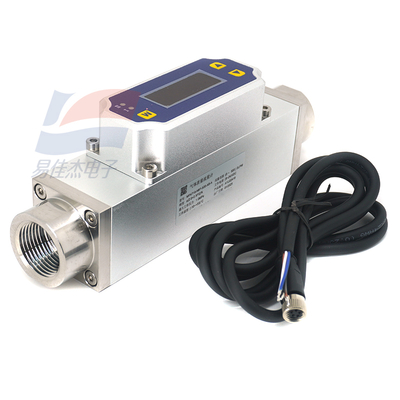

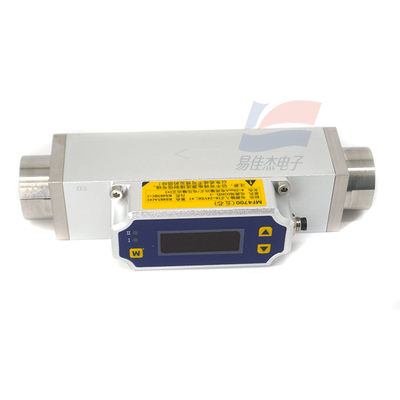

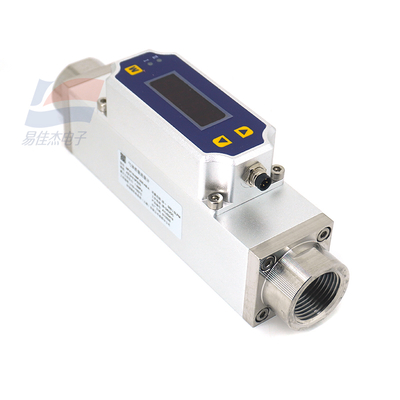

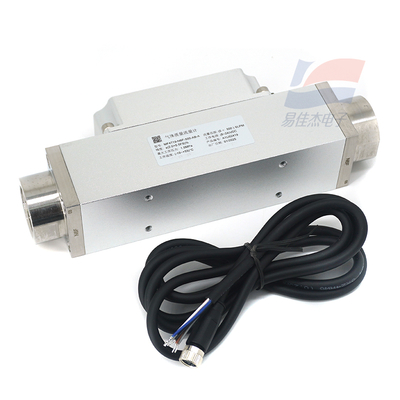

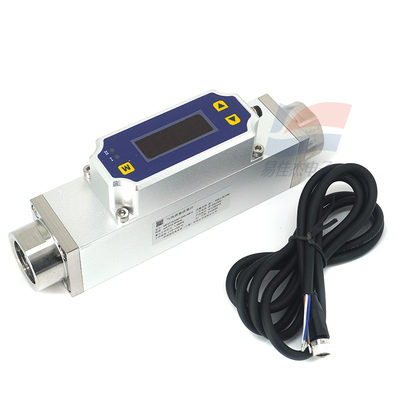

MF4719-N6F-500-AB-A Flow Sensor For Oxygen Therapy Systems Anesthesia Machines
Product Overview:
The MF4719-N6F-500-AB-A is a high-precision gas mass flow sensor designed for industrial and commercial applications requiring accurate flow measurement. It integrates advanced MEMS (Micro-Electro-Mechanical System) technology to ensure reliable performance across a wide range of gases and environmental conditions. This sensor is ideal for applications such as medical oxygen supply, industrial gas monitoring, and process control.
Product Features:
Applications:
| Measurement Range | 0–500 SLPM (Standard Liter per Minute) |
| Accuracy | ±1.5% of Full Scale (F.S.) |
| Repeatability | ±0.75% |
| Response Time | <100 ms |
| Operating Pressure | 1.0 MPa (145 psi) |
| Temperature Range | -10°C to +55°C |
| Humidity Range | 5–95% RH (non-condensing) |
| Output Signals | - RS485 communication (Modbus RTU) - 4–20 mA analog - Pulse output |
| Power Supply | 8–24 VDC (35 mA typical) |
| Interface Type | NPT 6F (customizable to BSPT or other standards) |
| Calibration | Air @ 20°C, 101.325 kPa |
| Material | Stainless steel 316L (wetted parts) |
| Dimensions | Φ25 mm × 80 mm (customizable) |
| Weight | 120 g |
